4802.2330

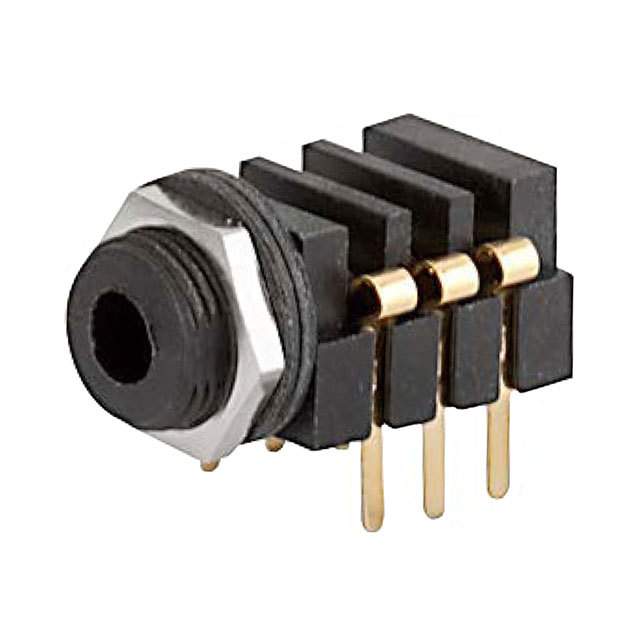

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 4802.2330 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 4802.2330 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 4802.2330 |
|---|---|
| Manufacturer | Schurter |
| Description | CONN JACK STEREO 3.5MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 50 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $2.41 | $2.22 | $1.818 | $1.511 | $1.432 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 4802.2330 | Manufacturer | Schurter |
|---|---|---|---|
| Description | CONN JACK STEREO 3.5MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 26075 pcs | Data sheet | 4802 Socket |
| Category | Connectors, Interconnects | Voltage - Rated | 12VAC/DC |
| Thread Size | Whitworth (UK) | Termination | Solder |
| Signal Lines | Stereo (3 Conductor, TRS) | Shielding | Unshielded |
| Series | 4802 | Panel Hole Size | 0.323" (8.20mm) |
| Packaging | Bulk | Other Names | 36310000 4802.2330-ND 486-3406 |
| Operating Temperature | -20°C ~ 70°C | Number of Positions/Contacts | 3 Conductors, 6 Contacts |
| Mounting Type | Panel Mount, Through Hole, Right Angle | Mating Length/Depth | 0.732" (18.60mm) |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Internal Switch(s) | Three Switches | Insulation Color | - |
| Industry Recognized Mating Diameter | 3.50mm (0.141", 1/8", Mini Plug) - Headphone | Includes | 2 pcs - 1 Connector, 1 Nut |
| Housing Material | Plastic | Gender | Female |
| Features | Mounting Hardware, Thread Lock | Detailed Description | 3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder |
| Current Rating | 1A | Contact Material - Plating | Gold |
| Contact Material | Brass | Connector Type | Phone Jack |
| Cable Opening | - | Body Material | - |
| Body Color | Black | Actual Diameter | 0.146" (3.70mm) |
