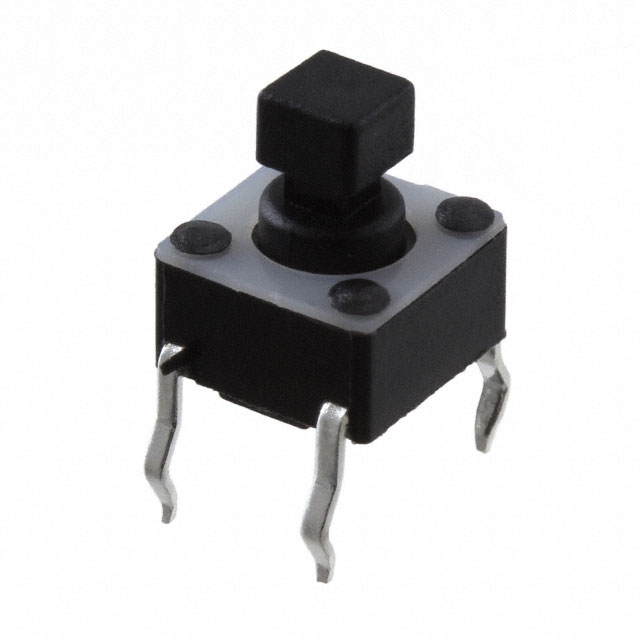

1301.9309
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1301.9309 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1301.9309 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1301.9309 |
|---|---|
| Manufacturer | Schurter |
| Description | SWITCH TACTILE SPST-NO 0.05A 12V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 50 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $0.084 | $0.081 | $0.068 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1301.9309 | Manufacturer | Schurter |
|---|---|---|---|
| Description | SWITCH TACTILE SPST-NO 0.05A 12V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 309883 pcs | Data sheet | LSH,LPH,LPS,LPV Series |
| Category | Switches | Termination Style | PC Pin |
| Switch Travel | 0.25mm | Switch Function | Off-Mom |
| Series | LPS | Packaging | Bulk |
| Outline | 6.00mm x 6.00mm | Other Names | 486-3464 486-3464-1 486-3464-1-ND |
| Operating Temperature | -20°C ~ 70°C | Operating Force | 160gf |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 100,000 Cycles | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | IP40 |
| Illumination Voltage (Nominal) | - | Illumination Type, Color | - |
| Illumination | Non-Illuminated | Features | Tactile Feedback |
| Detailed Description | Tactile Switch SPST-NO Top Actuated Through Hole | Contact Rating @ Voltage | 0.05A @ 12VDC |
| Circuit | SPST-NO | Actuator Type | Plunger for Cap |
| Actuator Orientation | Top Actuated | Actuator Material | - |
| Actuator Length, Right Angle | - | Actuator Height off PCB, Vertical | 7.40mm |
