RT8532-16-3M0

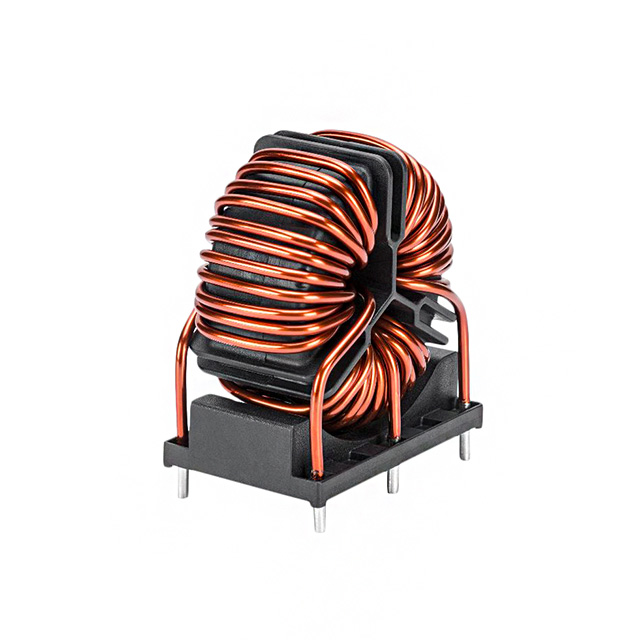

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RT8532-16-3M0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy RT8532-16-3M0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | RT8532-16-3M0 |
|---|---|
| Manufacturer | Schaffner EMC, Inc. |
| Description | COMMON MODE CHOKE 3MH 16A 3LN TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 70 pcs | 140 pcs | ||
|---|---|---|---|---|---|
| $3.674 | $2.978 | $2.934 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | RT8532-16-3M0 | Manufacturer | Schaffner EMC, Inc. |
|---|---|---|---|
| Description | COMMON MODE CHOKE 3MH 16A 3LN TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 12452 pcs | Data sheet | RT Series Datasheet |
| Category | Filters | Voltage Rating - DC | - |
| Voltage Rating - AC | 600V | Size / Dimension | 2.205" L x 1.457" W (56.00mm x 37.00mm) |
| Series | RT | Ratings | - |
| Package / Case | Vertical, 6 PC Pin | Other Names | 817-2289 |
| Operating Temperature | -40°C ~ 100°C | Number of Lines | 3 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance @ Frequency | 3mH @ 100kHz | Height (Max) | 2.362" (60.00mm) |
| Filter Type | Power Line | Features | - |
| Detailed Description | 3mH @ 100kHz 3 Line Common Mode Choke Through Hole 16A DCR 8 mOhm (Typ) | DC Resistance (DCR) (Max) | 8 mOhm (Typ) |
| Current Rating (Max) | 16A | Approvals | - |
