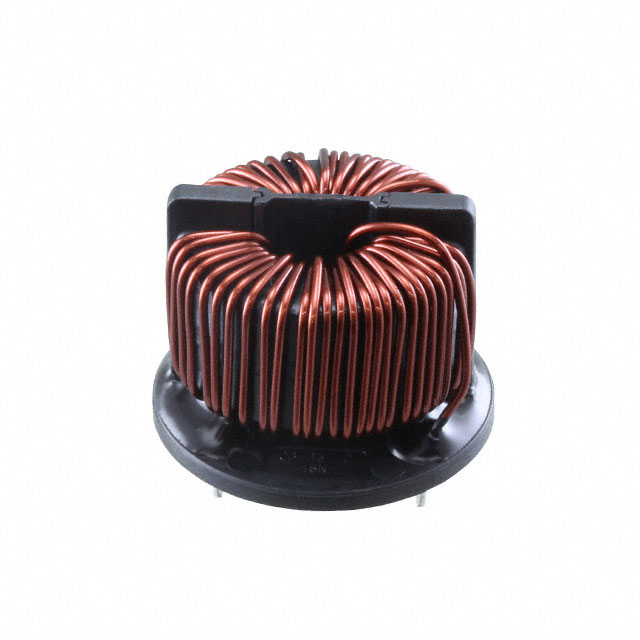

RT8122-12-5M0
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RT8122-12-5M0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy RT8122-12-5M0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | RT8122-12-5M0 |
|---|---|
| Manufacturer | Schaffner EMC, Inc. |
| Description | COMMON MODE CHOKE 5MH 12A 2LN TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 60 pcs | 120 pcs | 540 pcs | 1020 pcs |
|---|---|---|---|---|---|
| $3.11 | $2.115 | $1.991 | $1.866 | $1.838 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | RT8122-12-5M0 | Manufacturer | Schaffner EMC, Inc. |
|---|---|---|---|
| Description | COMMON MODE CHOKE 5MH 12A 2LN TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 16583 pcs | Data sheet | RT Series Datasheet |
| Category | Filters | Voltage Rating - DC | 425V |
| Voltage Rating - AC | 300V | Size / Dimension | 2.008" Dia (51.00mm) |
| Series | RT | Ratings | - |
| Package / Case | Horizontal, 4 PC Pin | Other Names | 816958 817-2270 |
| Operating Temperature | -40°C ~ 100°C | Number of Lines | 2 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance @ Frequency | 5mH @ 100kHz | Height (Max) | 1.299" (33.00mm) |
| Filter Type | Power Line | Features | - |
| Detailed Description | 5mH @ 100kHz 2 Line Common Mode Choke Through Hole 12A DCR 14 mOhm (Typ) | DC Resistance (DCR) (Max) | 14 mOhm (Typ) |
| Current Rating (Max) | 12A | Approvals | - |
