RN232-1.6-02-10M
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RN232-1.6-02-10M with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy RN232-1.6-02-10M with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | RN232-1.6-02-10M |
|---|---|
| Manufacturer | Schaffner EMC, Inc. |
| Description | CMC 10MH 1.6A 2LN TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 300 pcs | ||
|---|---|---|---|---|---|
| $1.007 | $0.929 | $0.557 | |||
| 600 pcs | 1200 pcs | 2700 pcs | |||
| $0.526 | $0.48 | $0.465 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | RN232-1.6-02-10M | Manufacturer | Schaffner EMC, Inc. |
|---|---|---|---|
| Description | CMC 10MH 1.6A 2LN TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 65555 pcs | Data sheet | RN Series Datasheet |
| Category | Filters | Voltage Rating - DC | - |
| Voltage Rating - AC | 300V | Size / Dimension | 1.220" L x 0.709" W (31.00mm x 18.00mm) |
| Series | RN | Ratings | - |
| Packaging | Tray | Package / Case | Vertical, 4 PC Pin |
| Other Names | 816571 817-2212 |
Operating Temperature | -40°C ~ 100°C |
| Number of Lines | 2 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance @ Frequency | 10mH @ 10kHz |
| Height (Max) | 1.362" (34.60mm) | Filter Type | Power Line |
| Features | - | Detailed Description | 10mH @ 10kHz 2 Line Common Mode Choke Through Hole 1.6A DCR 170 mOhm (Typ) |
| DC Resistance (DCR) (Max) | 170 mOhm (Typ) | Current Rating (Max) | 1.6A |
| Approvals | ENEC, UR, VDE |
- Related products
- Related news
Related products

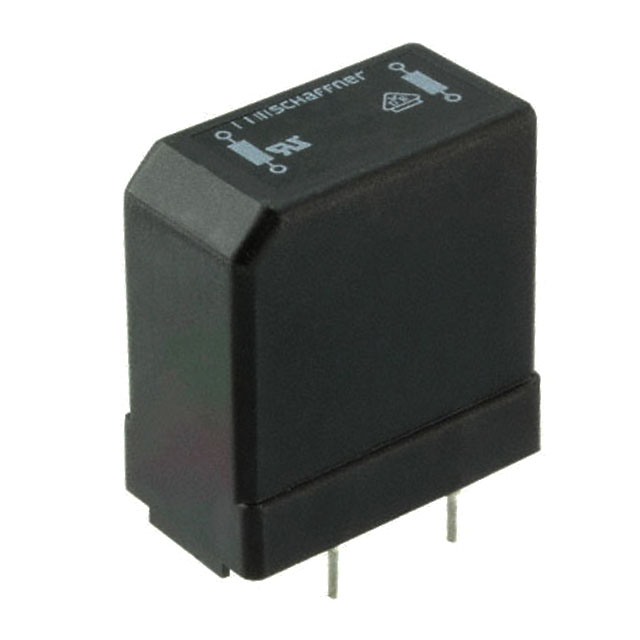

- Part#:
