RD6127-16-3M0

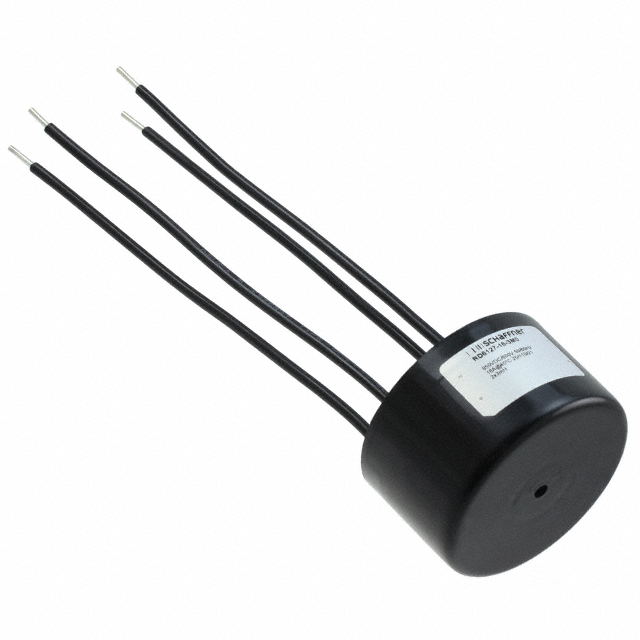

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RD6127-16-3M0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy RD6127-16-3M0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | RD6127-16-3M0 |
|---|---|
| Manufacturer | Schaffner EMC, Inc. |
| Description | COMMON MODE CHOKE 3MH 16A 2LN TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $5.501 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | RD6127-16-3M0 | Manufacturer | Schaffner EMC, Inc. |
|---|---|---|---|
| Description | COMMON MODE CHOKE 3MH 16A 2LN TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5780 pcs | Data sheet | RD Series |
| Category | Filters | Voltage Rating - DC | 850V |
| Voltage Rating - AC | 600V | Size / Dimension | 2.362" L x 2.362" W (60.00mm x 60.00mm) |
| Series | RD | Ratings | - |
| Packaging | Tray | Package / Case | Horizontal, 4 PC Pin |
| Other Names | 292-135 800655 817-2020 RD6127-16-3M0-ND |
Operating Temperature | -25°C ~ 110°C |
| Number of Lines | 2 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance @ Frequency | 3mH @ 1kHz |
| Height (Max) | 1.398" (35.50mm) | Filter Type | Power Line |
| Features | - | Detailed Description | 3mH @ 1kHz 2 Line Common Mode Choke Through Hole 16A (Typ) DCR 10.9 mOhm (Typ) |
| DC Resistance (DCR) (Max) | 10.9 mOhm (Typ) | Current Rating (Max) | 16A (Typ) |
| Approvals | - |
