RB8522-50-0M8

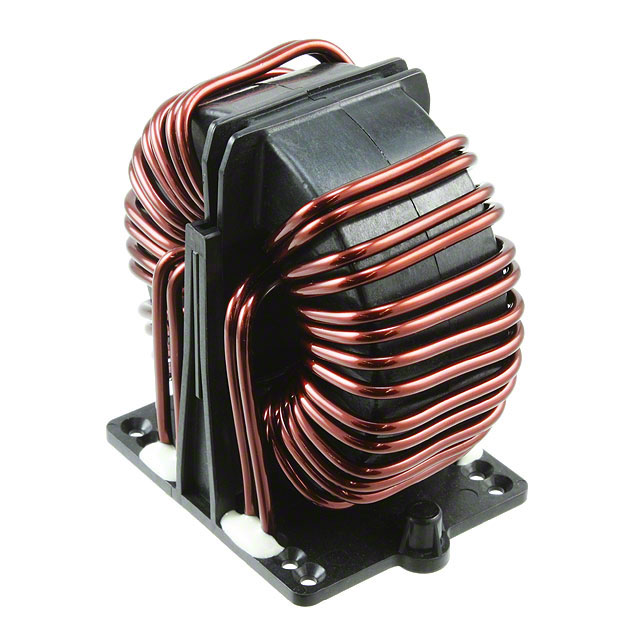

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RB8522-50-0M8 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy RB8522-50-0M8 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | RB8522-50-0M8 |
|---|---|
| Manufacturer | Schaffner EMC, Inc. |
| Description | CMC 750UH 50A 2LN TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $8.231 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | RB8522-50-0M8 | Manufacturer | Schaffner EMC, Inc. |
|---|---|---|---|
| Description | CMC 750UH 50A 2LN TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4487 pcs | Data sheet | RB Series |
| Category | Filters | Voltage Rating - DC | 1000V (1kV) |
| Voltage Rating - AC | 600V | Size / Dimension | 2.362" L x 1.988" W (60.00mm x 50.50mm) |
| Series | RB | Ratings | - |
| Packaging | Bulk | Package / Case | Vertical, 8 PC Pin |
| Other Names | 811863 817-1674 RB8522500M8 |
Operating Temperature | -40°C ~ 125°C |
| Number of Lines | 2 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance @ Frequency | 750µH @ 400Hz |
| Height (Max) | 3.150" (80.00mm) | Filter Type | Power Line |
| Features | - | Detailed Description | 750µH @ 400Hz 2 Line Common Mode Choke Through Hole 50A DCR 1.7 mOhm (Typ) |
| DC Resistance (DCR) (Max) | 1.7 mOhm (Typ) | Current Rating (Max) | 50A |
| Approvals | - |
