EV20-1.5-02-1M8

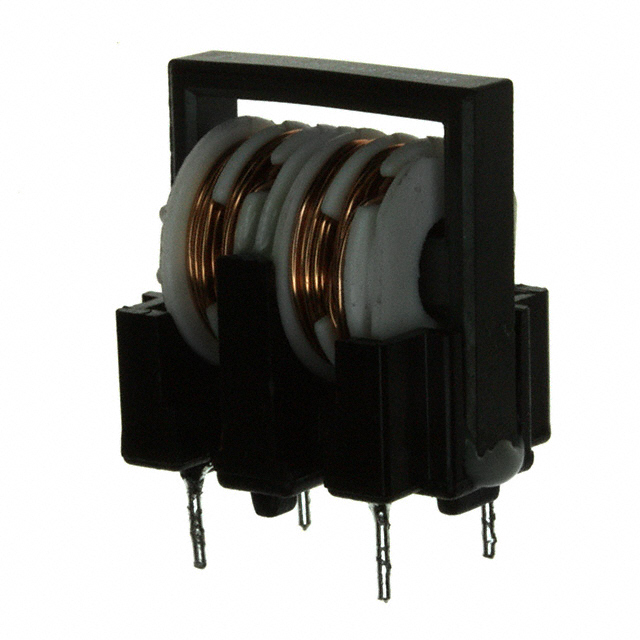

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EV20-1.5-02-1M8 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EV20-1.5-02-1M8 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EV20-1.5-02-1M8 |
|---|---|
| Manufacturer | Schaffner EMC, Inc. |
| Description | CMC 1.8MH 1.5A 2LN TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $0.764 | $0.704 | $0.493 | |||
| 500 pcs | 1000 pcs | 2500 pcs | |||
| $0.399 | $0.364 | $0.352 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | EV20-1.5-02-1M8 | Manufacturer | Schaffner EMC, Inc. |
|---|---|---|---|
| Description | CMC 1.8MH 1.5A 2LN TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 59580 pcs | Data sheet | EV,EH Series |
| Category | Filters | Voltage Rating - DC | - |
| Voltage Rating - AC | 250V | Size / Dimension | 0.827" L x 0.630" W (21.00mm x 16.00mm) |
| Series | EV | Ratings | - |
| Packaging | Tube | Package / Case | Vertical, 4 PC Pin |
| Other Names | 295-499 801052 817-1035 EV20-1,5-02-1M8 EV2015021M8 |
Operating Temperature | -25°C ~ 100°C |
| Number of Lines | 2 | Mounting Type | Through Hole |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance @ Frequency | 1.8mH @ 10kHz | Height (Max) | 1.024" (26.00mm) |
| Filter Type | Power Line | Features | - |
| Detailed Description | 1.8mH @ 10kHz 2 Line Common Mode Choke Through Hole 1.5A DCR 72 mOhm (Typ) | DC Resistance (DCR) (Max) | 72 mOhm (Typ) |
| Current Rating (Max) | 1.5A | Approvals | - |
