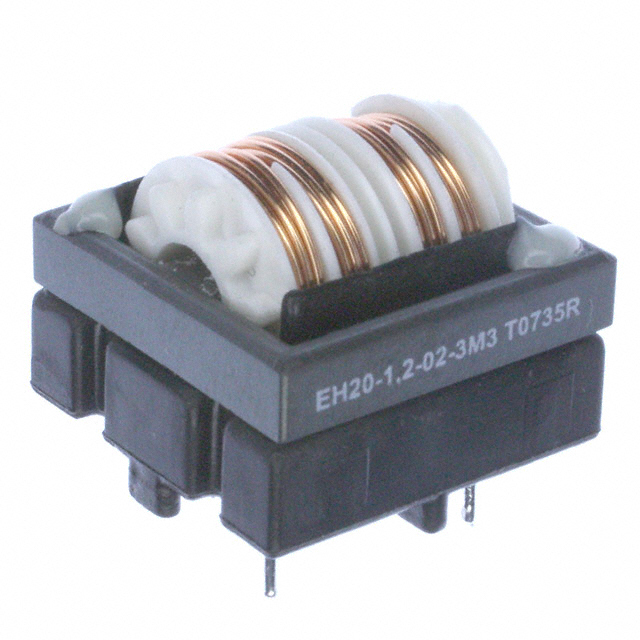

EH20-1.2-02-3M3
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EH20-1.2-02-3M3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EH20-1.2-02-3M3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EH20-1.2-02-3M3 |
|---|---|
| Manufacturer | Schaffner EMC, Inc. |
| Description | CMC 3.3MH 1.2A 2LN TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $0.693 | $0.64 | $0.448 | |||
| 500 pcs | 1000 pcs | 2500 pcs | |||
| $0.363 | $0.331 | $0.32 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | EH20-1.2-02-3M3 | Manufacturer | Schaffner EMC, Inc. |
|---|---|---|---|
| Description | CMC 3.3MH 1.2A 2LN TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 71644 pcs | Data sheet | EV,EH Series |
| Category | Filters | Voltage Rating - DC | - |
| Voltage Rating - AC | 250V | Size / Dimension | 0.827" L x 0.827" W (21.00mm x 21.00mm) |
| Series | EH | Ratings | - |
| Packaging | Tube | Package / Case | Horizontal, 4 PC Pin |
| Other Names | 295-523 801076 817-1004 EH20-1,2-02-3M3 EH2012023M3 |
Operating Temperature | -25°C ~ 100°C |
| Number of Lines | 2 | Mounting Type | Through Hole |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance @ Frequency | 3.3mH @ 400Hz | Height (Max) | 0.740" (18.80mm) |
| Filter Type | Power Line | Features | - |
| Detailed Description | 3.3mH @ 400Hz 2 Line Common Mode Choke Through Hole 1.2A DCR 127 mOhm (Typ) | DC Resistance (DCR) (Max) | 127 mOhm (Typ) |
| Current Rating (Max) | 1.2A | Approvals | - |
