Home > Products > Discrete Semiconductor Products > Transistors - Bipolar (BJT) - Single > STD03P

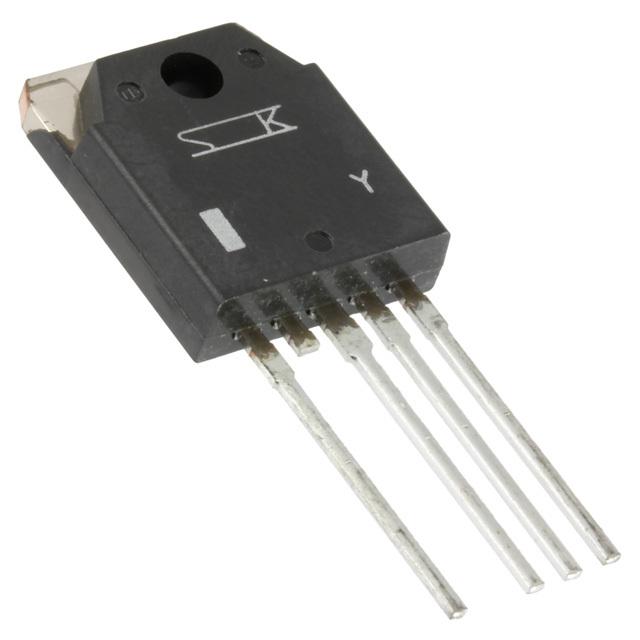

STD03P

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy STD03P with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	STD03P
Manufacturer	Sanken Electric Co., Ltd.
Description	TRANS PNP DARL 160V 15A TO-3P-5
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 34049 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	100 pcs
	$2.045	$1.827	$1.644	$1.498
	$1.352	$1.213	$1.023

Product parameter
Data sheet

Product parameter

Part Number	STD03P	Manufacturer	Sanken Electric Co., Ltd.
Description	TRANS PNP DARL 160V 15A TO-3P-5	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	34049 pcs	Data sheet	STD03P
Category	Discrete Semiconductor Products	Voltage - Collector Emitter Breakdown (Max)	160V
Vce Saturation (Max) @ Ib, Ic	2V @ 10mA, 10A	Transistor Type	PNP - Darlington
Supplier Device Package	TO-3P-5L	Series	-
Power - Max	160W	Packaging	Bulk
Package / Case	TO-3P-5	Other Names	STD03P DK
Operating Temperature	150°C (TJ)	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	12 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Frequency - Transition	-
Detailed Description	Bipolar (BJT) Transistor PNP - Darlington 160V 15A 160W Through Hole TO-3P-5L	DC Current Gain (hFE) (Min) @ Ic, Vce	5000 @ 10A, 4V
Current - Collector Cutoff (Max)	100µA (ICBO)	Current - Collector (Ic) (Max)	15A
