STD01N

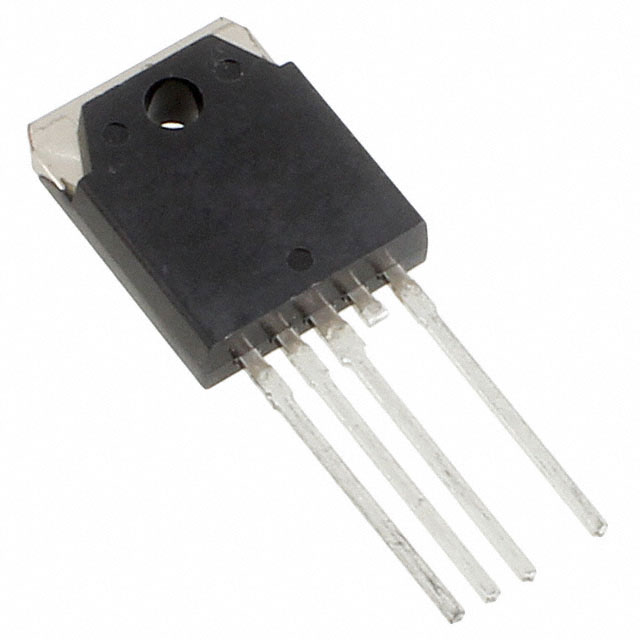

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy STD01N with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy STD01N with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | STD01N |
|---|---|
| Manufacturer | Sanken Electric Co., Ltd. |
| Description | TRANS NPN DARL 150V 10A TO-3P-5 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $1.694 | $1.513 | $1.362 | $1.241 | ||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $1.12 | $1.005 | $0.847 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | STD01N | Manufacturer | Sanken Electric Co., Ltd. |
|---|---|---|---|
| Description | TRANS NPN DARL 150V 10A TO-3P-5 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 43090 pcs | Data sheet | STD01N(P) |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 150V |
| Vce Saturation (Max) @ Ib, Ic | 2V @ 6mA, 6A | Transistor Type | NPN - Darlington |
| Supplier Device Package | TO-3P-5L | Series | - |
| Power - Max | 100W | Packaging | Bulk |
| Package / Case | TO-3P-5 | Other Names | STD01N DK |
| Operating Temperature | 150°C (TJ) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Frequency - Transition | - |
| Detailed Description | Bipolar (BJT) Transistor NPN - Darlington 150V 10A 100W Through Hole TO-3P-5L | DC Current Gain (hFE) (Min) @ Ic, Vce | 5000 @ 6A, 4V |
| Current - Collector Cutoff (Max) | 100µA (ICBO) | Current - Collector (Ic) (Max) | 10A |
