SMA6863MZ-LF2451

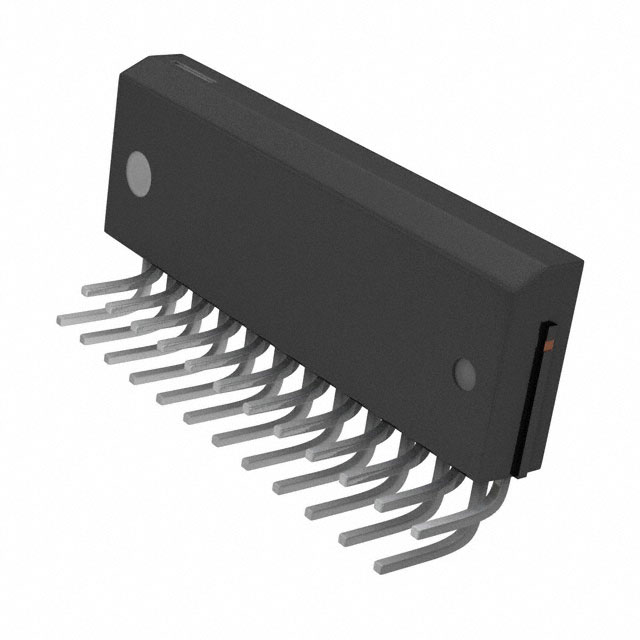

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SMA6863MZ-LF2451 with confidence from Components-World.HK, 1 Year Warranty
Dowload SMA6863MZ-LF2451 Details in PDFSee Product Specifications for product details.
Buy SMA6863MZ-LF2451 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SMA6863MZ-LF2451 |
|---|---|
| Manufacturer | Sanken Electric Co., Ltd. |
| Description | IC MOTOR DRIVER PAR 24SIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 18 pcs | 36 pcs | 108 pcs | |
|---|---|---|---|---|---|
| $3.471 | $3.123 | $2.846 | $2.568 | ||
| 252 pcs | 504 pcs | 1008 pcs | |||
| $2.36 | $2.152 | $1.874 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | SMA6863MZ-LF2451 | Manufacturer | Sanken Electric Co., Ltd. |
|---|---|---|---|
| Description | IC MOTOR DRIVER PAR 24SIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 18802 pcs | Data sheet | General CatalogSMA6860MZ Series |
| Category | Integrated Circuits (ICs) | Voltage - Supply | 20V |
| Voltage - Load | 400V (Max) | Technology | Power MOSFET |
| Supplier Device Package | 24-SIP, LF2451 | Series | - |
| Rds On (Typ) | - | Packaging | Tube |
| Package / Case | 24-SSIP Formed Leads | Output Configuration | Half Bridge (3) |
| Other Names | SMA6863MZ LF2451 SMA6863MZ LF2451-ND SMA6863MZ-LF2451 DK |
Operating Temperature | -20°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Load Type | Inductive | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Interface | Logic | Features | - |
| Fault Protection | Current Limiting, Over Temperature, UVLO | Detailed Description | Half Bridge (3) Driver AC Motors Power MOSFET 24-SIP, LF2451 |
| Current - Peak Output | 3.75A | Current - Output / Channel | 2.5A |
| Applications | AC Motors |
