EKI04047

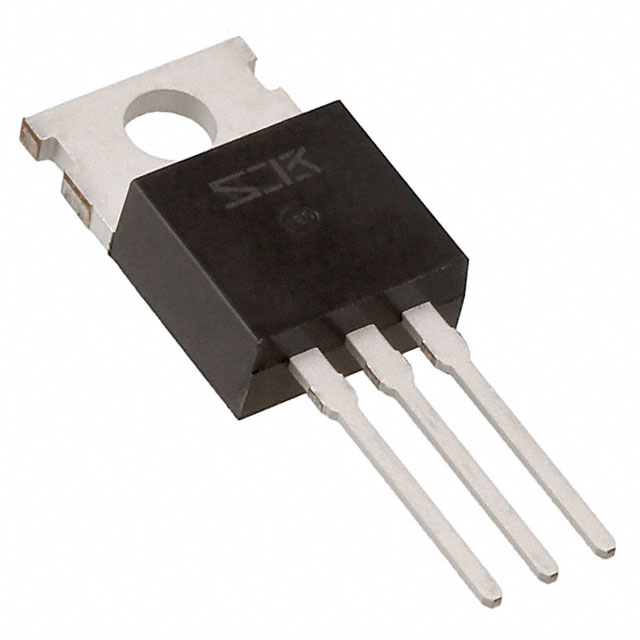

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EKI04047 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EKI04047 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EKI04047 |
|---|---|
| Manufacturer | Sanken Electric Co., Ltd. |
| Description | MOSFET N-CH 40V 80A TO-220 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10000 pcs | ||||
|---|---|---|---|---|---|
| $0.146 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | EKI04047 | Manufacturer | Sanken Electric Co., Ltd. |
|---|---|---|---|
| Description | MOSFET N-CH 40V 80A TO-220 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 142060 pcs | Data sheet | EKI04047 |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 2.5V @ 650µA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | TO-220-3 | Series | - |
| Rds On (Max) @ Id, Vgs | 5.2 mOhm @ 42.8A, 10V | Power Dissipation (Max) | 90W (Tc) |
| Packaging | Tube | Package / Case | TO-220-3 |
| Other Names | EKI04047 DK | Operating Temperature | 150°C (TJ) |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 2410pF @ 25V | Gate Charge (Qg) (Max) @ Vgs | 35.3nC @ 10V |
| FET Type | N-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | Drain to Source Voltage (Vdss) | 40V |
| Detailed Description | N-Channel 40V 80A (Tc) 90W (Tc) Through Hole TO-220-3 | Current - Continuous Drain (Id) @ 25°C | 80A (Tc) |
