2SC4140

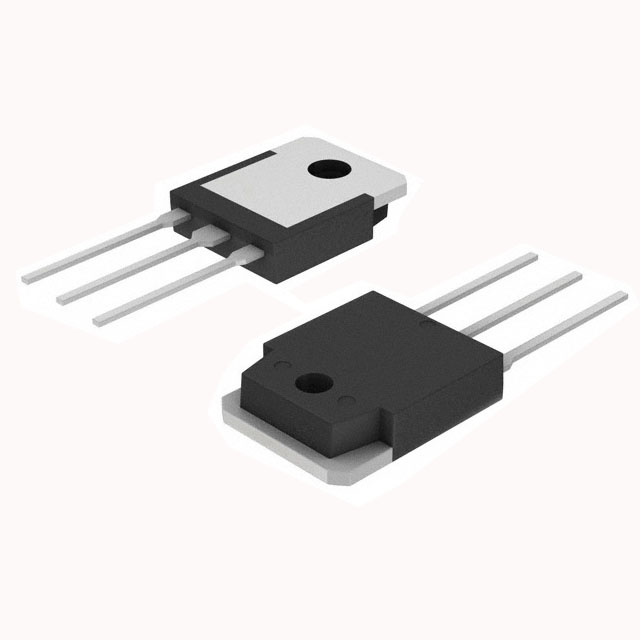

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2SC4140 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2SC4140 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2SC4140 |
|---|---|
| Manufacturer | Sanken Electric Co., Ltd. |
| Description | TRANS NPN 400V 18A TO3P |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $1.351 | $1.207 | $1.086 | $0.99 | ||
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.893 | $0.801 | $0.676 | $0.644 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2SC4140 | Manufacturer | Sanken Electric Co., Ltd. |
|---|---|---|---|
| Description | TRANS NPN 400V 18A TO3P | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 59647 pcs | Data sheet | 2SC4140 |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 400V |
| Vce Saturation (Max) @ Ib, Ic | 500mV @ 2A, 10A | Transistor Type | NPN |
| Supplier Device Package | TO-3P | Series | - |
| Power - Max | 130W | Packaging | Bulk |
| Package / Case | TO-3P-3, SC-65-3 | Other Names | 2SC4140 DK |
| Operating Temperature | 150°C (TJ) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 24 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Frequency - Transition | 10MHz |
| Detailed Description | Bipolar (BJT) Transistor NPN 400V 18A 10MHz 130W Through Hole TO-3P | DC Current Gain (hFE) (Min) @ Ic, Vce | 10 @ 10A, 4V |
| Current - Collector Cutoff (Max) | 100µA (ICBO) | Current - Collector (Ic) (Max) | 18A |
