2SA1294

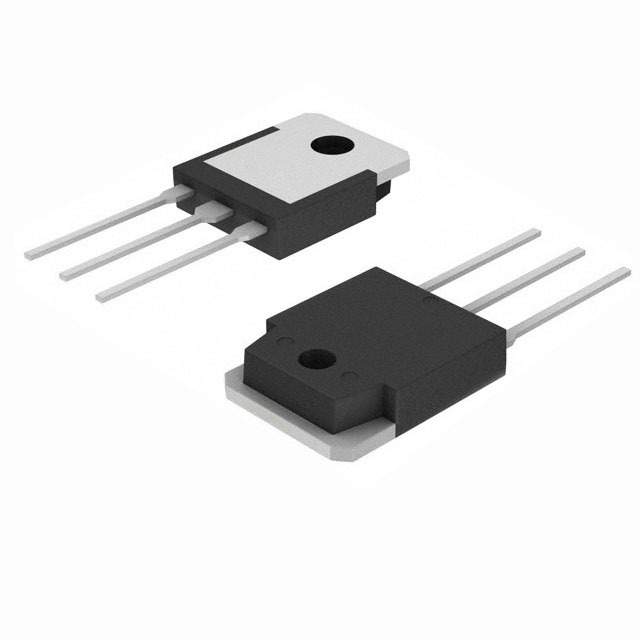

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2SA1294 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2SA1294 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2SA1294 |
|---|---|
| Manufacturer | Sanken Electric Co., Ltd. |
| Description | TRANS PNP 230V 15A TO-3P |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $1.574 | $1.405 | $1.265 | $1.152 | ||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $1.04 | $0.933 | $0.787 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2SA1294 | Manufacturer | Sanken Electric Co., Ltd. |
|---|---|---|---|
| Description | TRANS PNP 230V 15A TO-3P | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 38525 pcs | Data sheet | 2SA1294 |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 230V |
| Vce Saturation (Max) @ Ib, Ic | 2V @ 500mA, 5A | Transistor Type | PNP |
| Supplier Device Package | TO-3P | Series | - |
| Power - Max | 130W | Packaging | Bulk |
| Package / Case | TO-3P-3, SC-65-3 | Other Names | 2SA1294 DK |
| Operating Temperature | 150°C (TJ) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 24 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Frequency - Transition | 35MHz |
| Detailed Description | Bipolar (BJT) Transistor PNP 230V 15A 35MHz 130W Through Hole TO-3P | DC Current Gain (hFE) (Min) @ Ic, Vce | 50 @ 5A, 4V |
| Current - Collector Cutoff (Max) | 100µA (ICBO) | Current - Collector (Ic) (Max) | 15A |
