TSW-142-14-L-S

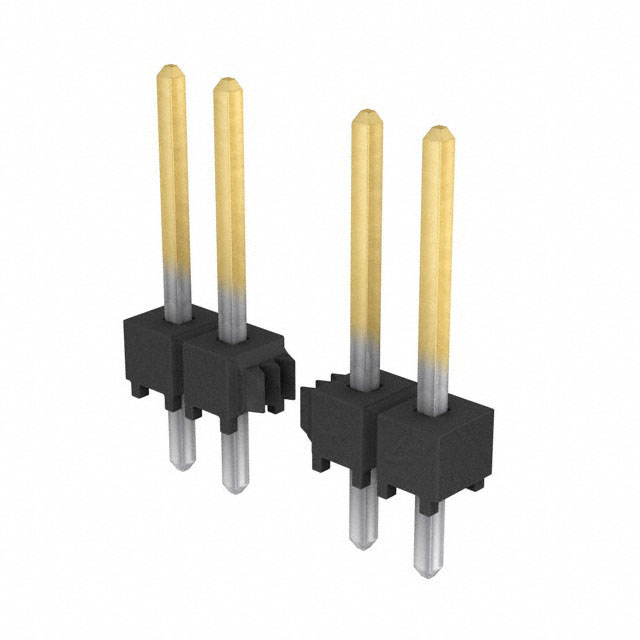

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TSW-142-14-L-S with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TSW-142-14-L-S with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TSW-142-14-L-S |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN HEADER 42POS .100" SGL GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $1.125 | $1.008 | $0.83 | $0.656 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.563 | $0.514 | $0.494 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | TSW-142-14-L-S | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN HEADER 42POS .100" SGL GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 76987 pcs | Data sheet | TSW Series DrawingHTSW, TSW Series DatasheetTSW Through Hole Footprint |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | TSW |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | 0.530" (13.46mm) |
| Other Names | SAM1055-42 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 42 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polybutylene Terephthalate (PBT) | Insulation Height | 0.100" (2.54mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole 42 position 0.100" (2.54mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.110" (2.79mm) |
| Contact Length - Mating | 0.320" (8.13mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
