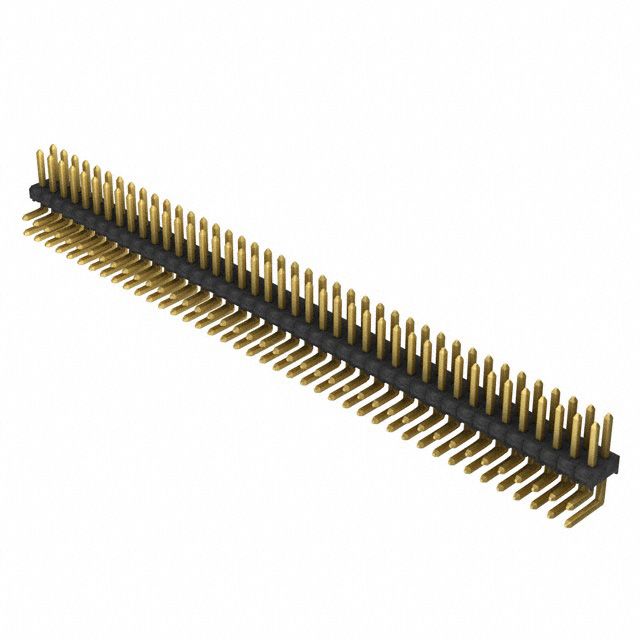

TSW-141-08-G-D-RA
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TSW-141-08-G-D-RA with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TSW-141-08-G-D-RA with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TSW-141-08-G-D-RA |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN HEADER 82POS .100 DL R/A AU |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $2.966 | $2.655 | $2.186 | $1.728 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $1.484 | $1.353 | $1.301 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | TSW-141-08-G-D-RA | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN HEADER 82POS .100 DL R/A AU | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 26179 pcs | Data sheet | TSW Series DrawingHTSW, TSW Series DatasheetTSW Through Hole Footprint |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | TSW |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | SAM1037-41 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 82 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polybutylene Terephthalate (PBT) | Insulation Height | 0.219" (5.56mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole, Right Angle 82 position 0.100" (2.54mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.090" (2.29mm) |
| Contact Length - Mating | 0.230" (5.84mm) | Contact Finish Thickness - Post | 3.00µin (0.076µm) |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
