TSW-128-08-S-D-RA
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TSW-128-08-S-D-RA with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TSW-128-08-S-D-RA with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TSW-128-08-S-D-RA |
|---|---|
| Manufacturer | Samtec Inc. |

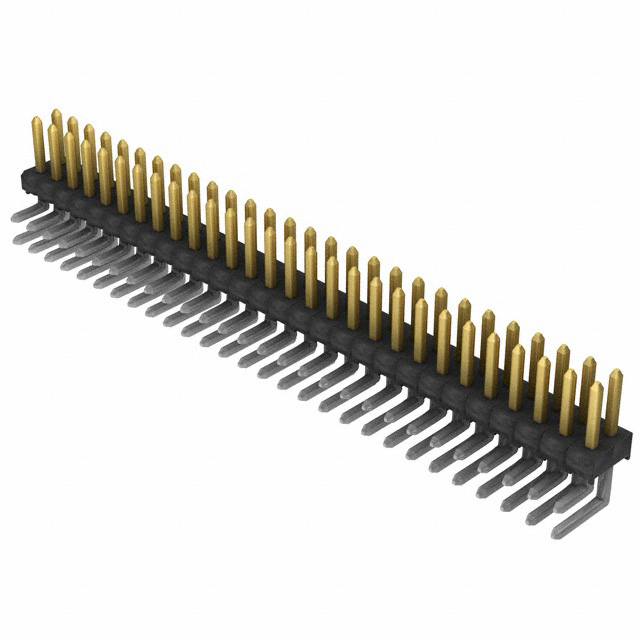

| Description | CONN HEADER 56POS .100 DL R/A AU |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $2.908 | $2.602 | $2.143 | $1.694 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $1.454 | $1.326 | $1.275 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | TSW-128-08-S-D-RA | Manufacturer | Samtec Inc. |
|---|---|---|---|
| Description | CONN HEADER 56POS .100 DL R/A AU | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 25484 pcs | Data sheet | TSW Through Hole FootprintHTSW, TSW Series DatasheetTSW Series Drawing |
| Category | Connectors, Interconnects | Voltage - DC Spark Over (Nom) | Phosphor Bronze |
| Type Attributes | - | Termination | Solder |
| Style | Board to Board or Cable | Stacking Direction | Male Pin |
| Shrouding | 0.100" (2.54mm) | Shield Termination | Square |
| Series | TSW | Row Spacing - Mating | Unshrouded |
| RoHS Status | Bulk | Ripple Current - Low Frequency | - |
| Pitch - Connector | - | Overall Contact Length | 0.090" (2.29mm) |
| Other Names | SAM1045-28 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions | 56 |
| Number of Contacts | - | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Material - Insulation | All | Manufacturer Part Number | TSW-128-08-S-D-RA |
| Length - Post (Mating) | - | Insulation Material | Tin |
| Insulation Height | - | Features | - |
| Expanded Description | 56 Positions Header Connector 0.100" (2.54mm) Through Hole, Right Angle Gold | Description | CONN HEADER 56POS .100 DL R/A AU |
| Current Rating | - | Current - Max/Contact | - |
| Contact Length - Post | 0.230" (5.84mm) | Contact Length - Mating | 0.100" (2.54mm) |
| Contact Finish Thickness - Post | Polybutylene Terephthalate (PBT) | Contact Finish Thickness - Mating | Gold |
| Contact Finish - Post | 30µin (0.76µm) | Contact Finish - Mating | 0.219" (5.56mm) |
| Connector Type | Header | Actual Diameter | Black |
