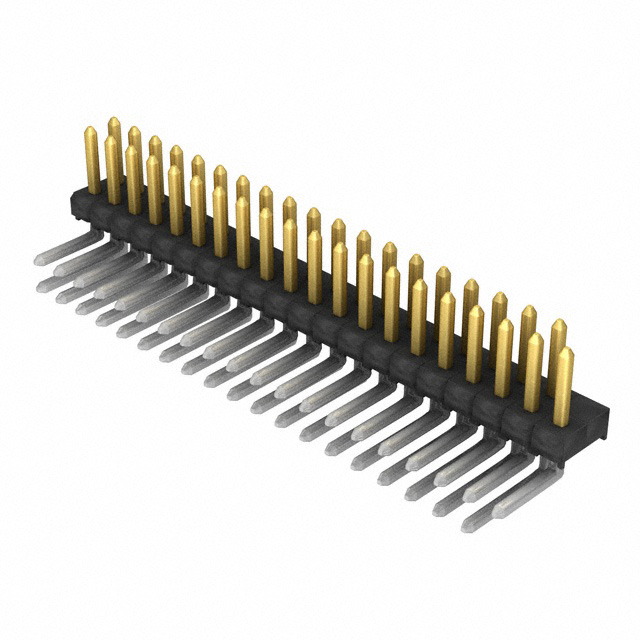

TSW-120-22-F-D-RA-020
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TSW-120-22-F-D-RA-020 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TSW-120-22-F-D-RA-020 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TSW-120-22-F-D-RA-020 |
|---|---|
| Manufacturer | Samtec Inc. |
| Description | CONN HEADER 40POS .100" DL GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $1.185 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | TSW-120-22-F-D-RA-020 | Manufacturer | Samtec Inc. |
|---|---|---|---|
| Description | CONN HEADER 40POS .100" DL GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 32226 pcs | Data sheet | TSW Through Hole FootprintHTSW, TSW Series DatasheetTSW Series Drawing |
| Category | Connectors, Interconnects | Voltage - DC Spark Over (Nom) | Phosphor Bronze |
| Type Attributes | - | Termination | Solder |
| Style | Board to Board or Cable | Stacking Direction | Male Pin |
| Shrouding | 0.100" (2.54mm) | Shield Termination | Square |
| Series | TSW | Row Spacing - Mating | Unshrouded |
| RoHS Status | Bulk | Ripple Current - Low Frequency | - |
| Pitch - Connector | - | Overall Contact Length | 0.190" (4.83mm) |
| Other Names | Q3809475A | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions | 40 |
| Number of Contacts | - | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Material - Insulation | All | Manufacturer Standard Lead Time | 3 Weeks |
| Manufacturer Part Number | TSW-120-22-F-D-RA-020 | Length - Post (Mating) | - |
| Insulation Material | Tin | Insulation Height | - |
| Features | - | Expanded Description | 40 Positions Header Connector 0.100" (2.54mm) Through Hole, Right Angle Gold |
| Description | CONN HEADER 40POS .100" DL GOLD | Current Rating | - |
| Current - Max/Contact | - | Contact Length - Post | 0.230" (5.84mm) |
| Contact Length - Mating | 0.100" (2.54mm) | Contact Finish Thickness - Post | Polybutylene Terephthalate (PBT) |
| Contact Finish Thickness - Mating | Gold | Contact Finish - Post | 3µin (0.08µm) |
| Contact Finish - Mating | 0.219" (5.56mm) | Connector Type | Header |
| Actual Diameter | Black |
