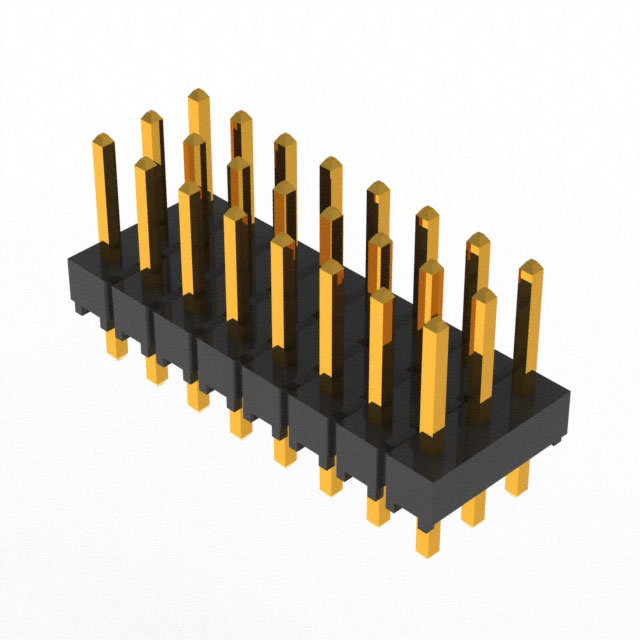

TSW-108-07-G-T
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TSW-108-07-G-T with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TSW-108-07-G-T with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TSW-108-07-G-T |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN HEADER 24POS .100" AU |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $0.902 | $0.818 | $0.701 | |||
| 500 pcs | 1000 pcs | 5000 pcs | |||
| $0.584 | $0.501 | $0.444 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | TSW-108-07-G-T | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN HEADER 24POS .100" AU | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 83977 pcs | Data sheet | TSW Series DrawingHTSW, TSW Series DatasheetTSW Through Hole Footprint |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | TSW |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | 0.430" (10.92mm) |
| Other Names | Q3895862AZ SAM10855 TSW-108-07-G-T-ND |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 3 | Number of Positions Loaded | All |
| Number of Positions | 24 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT) |
| Insulation Height | 0.100" (2.54mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 24 position 0.100" (2.54mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.100" (2.54mm) | Contact Length - Mating | 0.230" (5.84mm) |
| Contact Finish Thickness - Post | 3.00µin (0.076µm) | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
