TSW-101-25-S-D-RA
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TSW-101-25-S-D-RA with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TSW-101-25-S-D-RA with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TSW-101-25-S-D-RA |
|---|---|
| Manufacturer | Samtec, Inc. |

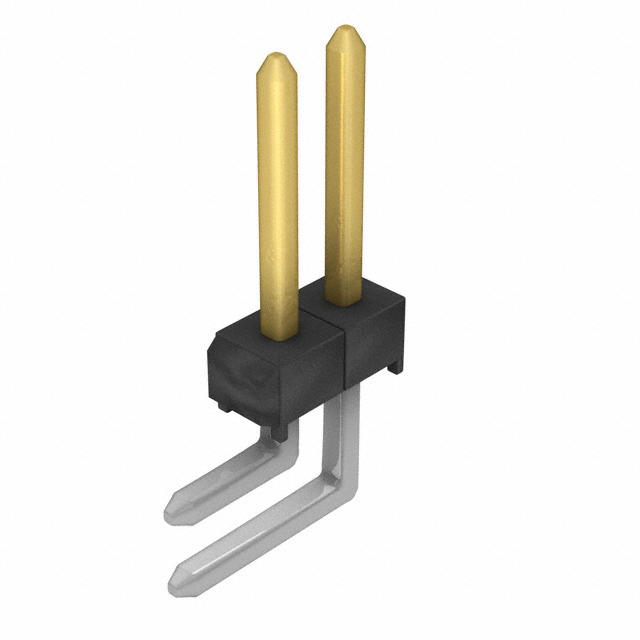

| Description | CONN HEADER 2POS .100" DBL R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $0.151 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | TSW-101-25-S-D-RA | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN HEADER 2POS .100" DBL R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 149706 pcs | Data sheet | TSW Series DrawingHTSW, TSW Series DatasheetTSW Through Hole Footprint |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | TSW |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | - |
| Packaging | Bulk | Overall Contact Length | - |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 2 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT) |
| Insulation Height | 0.219" (5.56mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole, Right Angle 2 position |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.100" (2.54mm) | Contact Length - Mating | 0.320" (8.13mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
