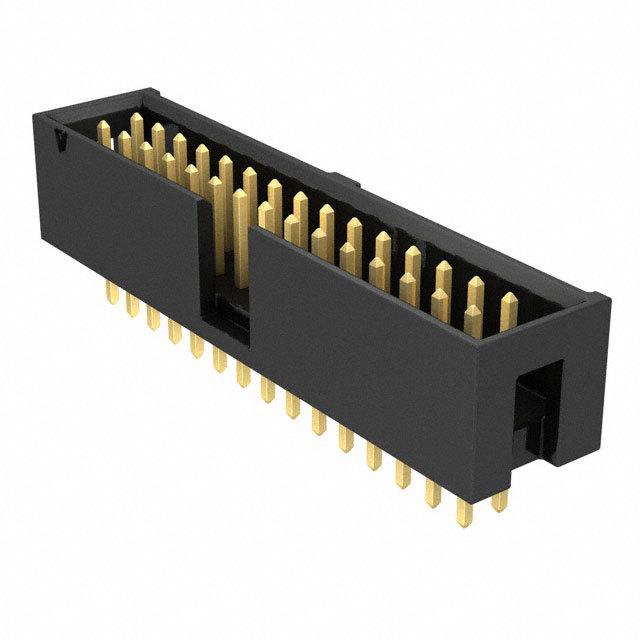

TST-115-01-G-D
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TST-115-01-G-D with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TST-115-01-G-D with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TST-115-01-G-D |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN HEADER 30POS .100" T/H GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $1.26 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | TST-115-01-G-D | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN HEADER 30POS .100" T/H GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 26642 pcs | Data sheet | TST,HTST,ZST Series DatasheetTST Series DrawingTSS/TST Double Row Footprint |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Flex Stack, TST |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tube | Overall Contact Length | 0.480" (12.19mm) |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 30 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 3 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled | Insulation Height | 0.350" (8.89mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Keying Slot | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole 30 position 0.100" (2.54mm) | Current Rating | 3.4A per Contact |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.115" (2.92mm) |
| Contact Length - Mating | 0.250" (6.35mm) | Contact Finish Thickness - Post | 3.00µin (0.076µm) |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
