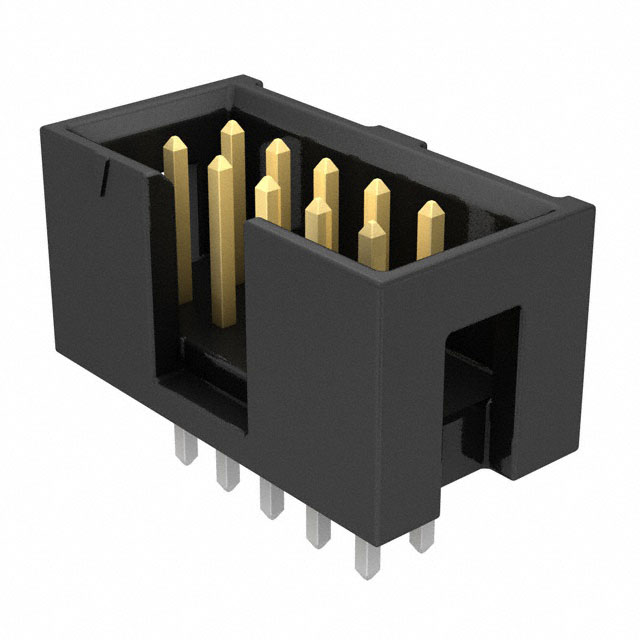

TST-105-02-L-D
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TST-105-02-L-D with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TST-105-02-L-D with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TST-105-02-L-D |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | SHOUDED .025 SQ STRIPS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $0.747 | $0.679 | $0.582 | |||
| 500 pcs | 1000 pcs | 5000 pcs | |||
| $0.485 | $0.415 | $0.368 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | TST-105-02-L-D | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | SHOUDED .025 SQ STRIPS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 88689 pcs | Data sheet | TST,HTST,ZST Series DatasheetTST Series Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Flex Stack, TST |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | SAM12290 TST-105-02-L-D-ND |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 10 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Insulation Height | 0.350" (8.89mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Keying Slot |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 10 position 0.100" (2.54mm) |
| Current Rating | 3.4A per Contact | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.165" (4.19mm) | Contact Length - Mating | 0.250" (6.35mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
