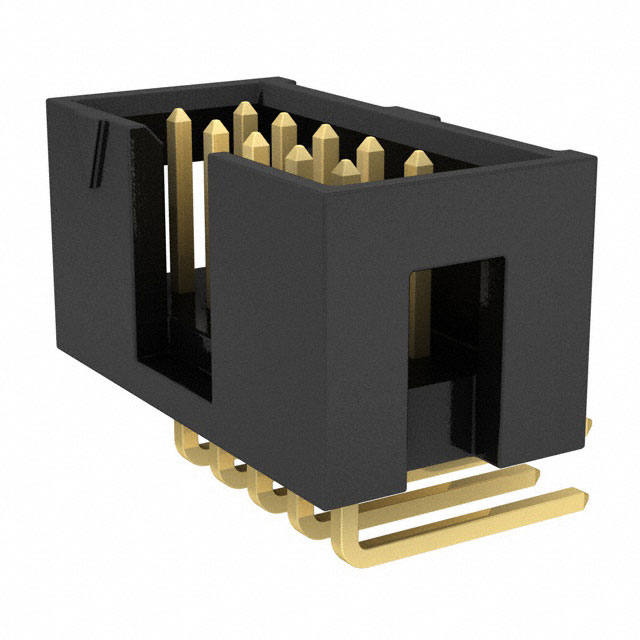

TSS-105-04-G-D-RA
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TSS-105-04-G-D-RA with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TSS-105-04-G-D-RA with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TSS-105-04-G-D-RA |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | LOW PROFILE .025 SQ STRIPS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 34 pcs | 102 pcs | ||
|---|---|---|---|---|---|
| $1.363 | $1.198 | $1.089 | |||
| 510 pcs | 1020 pcs | 5032 pcs | |||
| $0.925 | $0.789 | $0.708 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | TSS-105-04-G-D-RA | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | LOW PROFILE .025 SQ STRIPS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 42026 pcs | Data sheet | TSS-1 Series DrawingTSS, TST, HTSS, HTST, ZSS, ZST Series DatasheetTSS/TST Double Row Footprint |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | Flex Stack, TSS |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | SAM12278 TSS-105-04-G-D-RA-ND |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 10 | Mounting Type | Through Hole, Right Angle |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT) |
| Insulation Height | 0.365" (9.27mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Keying Slot |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole, Right Angle 10 position 0.100" (2.54mm) |
| Current Rating | 3A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.130" (3.30mm) | Contact Length - Mating | 0.250" (6.35mm) |
| Contact Finish Thickness - Post | 3.00µin (0.076µm) | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
