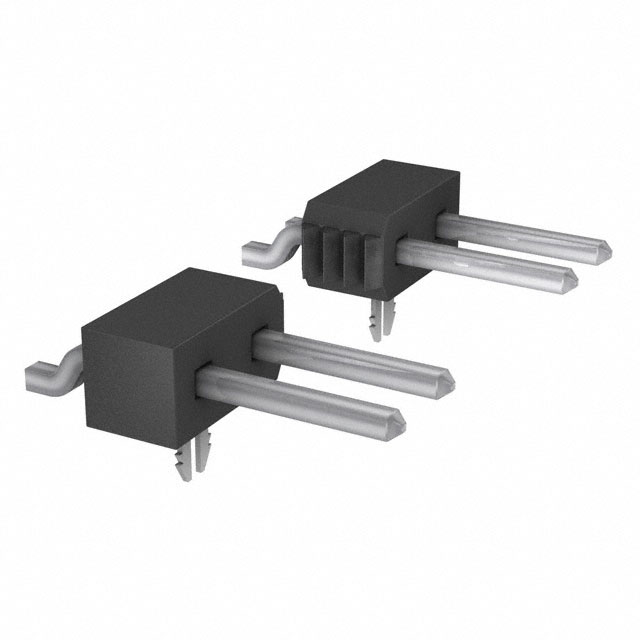

TSM-107-01-T-SH-LC
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TSM-107-01-T-SH-LC with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TSM-107-01-T-SH-LC with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TSM-107-01-T-SH-LC |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN HEADER 7POS .100" SNGL SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $0.495 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | TSM-107-01-T-SH-LC | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN HEADER 7POS .100" SNGL SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 71041 pcs | Data sheet | TSM-1 Series DrawingTSM Single-Horizontal FootprintTSM Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | TSM |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tube | Overall Contact Length | - |
| Operating Temperature | -55°C ~ 105°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 7 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 3 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.120" (3.05mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Board Lock | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Surface Mount, Right Angle 7 position 0.100" (2.54mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | - |
| Contact Length - Mating | 0.230" (5.84mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | - |
