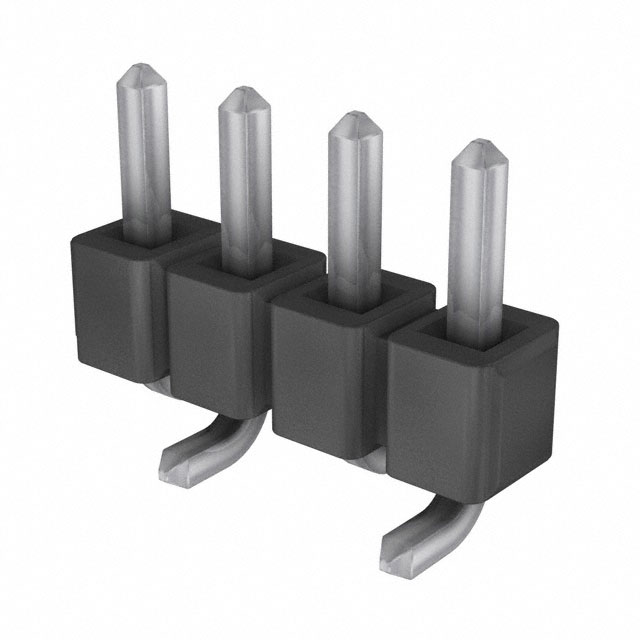

TSM-104-04-T-SV
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TSM-104-04-T-SV with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TSM-104-04-T-SV with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TSM-104-04-T-SV |
|---|---|
| Manufacturer | Samtec Inc. |
| Description | CONN HEADER 4POS .100" SNGL SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $0.151 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | TSM-104-04-T-SV | Manufacturer | Samtec Inc. |
|---|---|---|---|
| Description | CONN HEADER 4POS .100" SNGL SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 144210 pcs | Data sheet | TSM Single Row, Vertical FootprintTSM Series DatasheetTSM-1yy-yy-yyy-SV-yy-yyy-yy Drawing |
| Category | Connectors, Interconnects | Voltage - DC Spark Over (Nom) | Phosphor Bronze |
| Type Attributes | - | Termination | Solder |
| Style | Board to Board or Cable | Stacking Direction | Male Pin |
| Shrouding | 0.100" (2.54mm) | Shield Termination | Square |
| Series | TSM | Row Spacing - Mating | Unshrouded |
| RoHS Status | Tube | Ripple Current - Low Frequency | - |
| Pitch - Connector | - | Overall Contact Length | - |
| Operating Temperature | -55°C ~ 105°C | Number of Rows | 1 |
| Number of Positions | 4 | Number of Contacts | - |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Material - Insulation | All |
| Manufacturer Standard Lead Time | 3 Weeks | Manufacturer Part Number | TSM-104-04-T-SV |
| Length - Post (Mating) | - | Insulation Material | Tin |
| Insulation Height | - | Features | - |
| Expanded Description | 4 Positions Header Connector 0.100" (2.54mm) Surface Mount Tin | Description | CONN HEADER 4POS .100" SNGL SMD |
| Current Rating | - | Current - Max/Contact | - |
| Contact Length - Post | 0.120" (3.05mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | Liquid Crystal Polymer (LCP) | Contact Finish Thickness - Mating | Tin |
| Contact Finish - Post | - | Contact Finish - Mating | 0.100" (2.54mm) |
| Connector Type | Header | Actual Diameter | Black |
