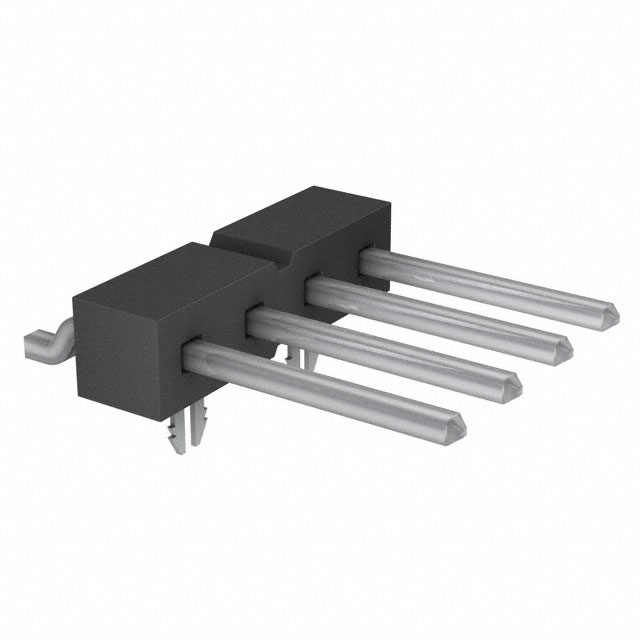

TSM-104-02-T-SH-LC
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TSM-104-02-T-SH-LC with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TSM-104-02-T-SH-LC with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TSM-104-02-T-SH-LC |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN HEADER 4 POS .100" SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $0.367 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | TSM-104-02-T-SH-LC | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN HEADER 4 POS .100" SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 102905 pcs | Data sheet | TSM-1 Series DrawingTSM Single-Horizontal FootprintTSM Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | TSM |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tube | Overall Contact Length | - |
| Operating Temperature | -55°C ~ 105°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 4 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.120" (3.05mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Lock |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Surface Mount, Right Angle 4 position 0.100" (2.54mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Length - Mating | 0.320" (8.13mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
