TSM-104-01-L-DV
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TSM-104-01-L-DV with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TSM-104-01-L-DV with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TSM-104-01-L-DV |
|---|---|
| Manufacturer | Samtec, Inc. |

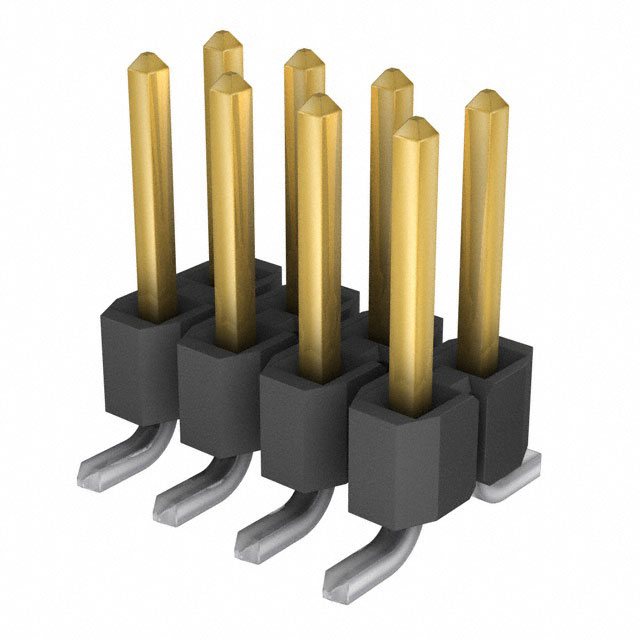

| Description | CONN HEADER .1" 8POS DUAL SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 57 pcs | 114 pcs | 513 pcs | |
|---|---|---|---|---|---|
| $0.345 | $0.273 | $0.261 | $0.214 | ||
| 1026 pcs | 5016 pcs | 10032 pcs | |||
| $0.19 | $0.166 | $0.158 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | TSM-104-01-L-DV | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN HEADER .1" 8POS DUAL SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 127543 pcs | Data sheet | TSM Double Row, Vertical FootprintTSM-1 Series DrawingTSM Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | TSM |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | Q6302603 SAM10792 TSM-104-01-L-DV-ND |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 8 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.100" (2.54mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Surface Mount 8 position 0.100" (2.54mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Length - Mating | 0.230" (5.84mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
