TSM-103-01-F-SV-P-TR

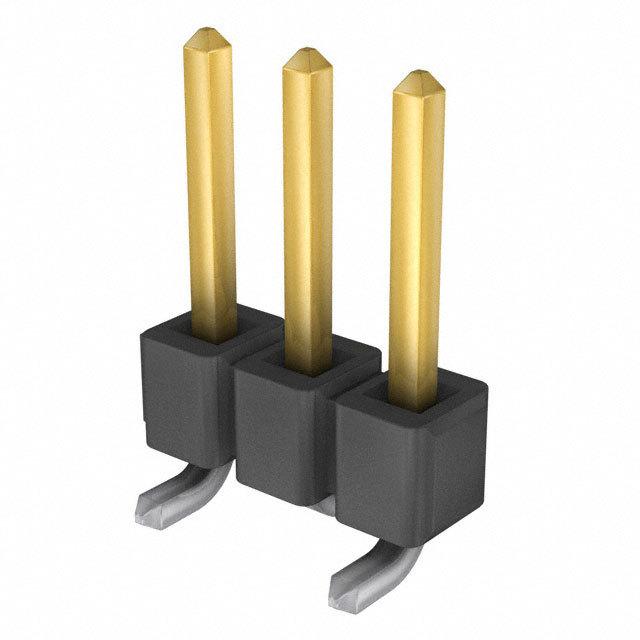

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TSM-103-01-F-SV-P-TR with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TSM-103-01-F-SV-P-TR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TSM-103-01-F-SV-P-TR |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | .025 SQ. TERMINAL STRIPS |
| Lead Free Status / RoHS Status | RoHS Compliant |
| Reference Price (In US Dollars) | 325 pcs | 650 pcs | 975 pcs | 1625 pcs | |
|---|---|---|---|---|---|
| $0.27 | $0.243 | $0.236 | $0.202 | ||
| 3250 pcs | 8125 pcs | 16250 pcs | |||
| $0.195 | $0.179 | $0.175 | |||
- Product parameter
Product parameter
| Part Number | TSM-103-01-F-SV-P-TR | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | .025 SQ. TERMINAL STRIPS | Lead Free Status / RoHS Status | RoHS Compliant |
| Quantity Available | 134643 pcs | Data sheet | |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | TSM |
| Row Spacing - Mating | - | RoHS Status | RoHS Compliant |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tape & Reel (TR) |
| Overall Contact Length | - | Other Names | SAM14784TR TSM-103-01-F-SV-P-TR-ND |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 3 |
| Mounting Type | Surface Mount | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 3 Weeks |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.100" (2.54mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Pick and Place | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Surface Mount 3 position 0.100" (2.54mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | - |
| Contact Length - Mating | 0.230" (5.84mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 3.00µin (0.076µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
