TS-132-G-A-2

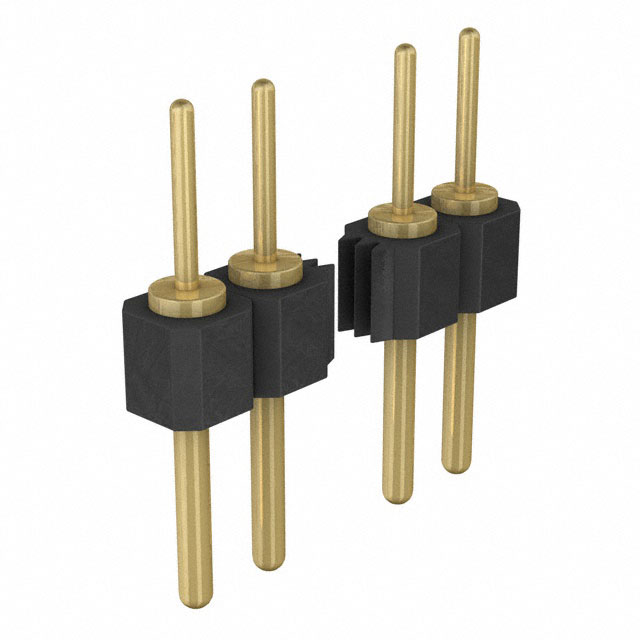

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TS-132-G-A-2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TS-132-G-A-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TS-132-G-A-2 |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN HEADER .100 SNGL STR 32POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $2.517 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | TS-132-G-A-2 | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN HEADER .100 SNGL STR 32POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 13024 pcs | Data sheet | TX-1XX-X-X Drawing 1TX-1XX-X-X Drawing 4TX-1XX-X-X Drawing 2TS, HTS, TD Series DatasheetTX-1XX-X-X Drawing 3 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Shrouding | Unshrouded | Series | TS |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tube | Overall Contact Length | 0.531" (13.50mm) |
| Other Names | Q5396740TK | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 32 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyester, Glass Filled |
| Insulation Height | 0.100" (2.54mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 32 position 0.100" (2.54mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.210" (5.33mm) | Contact Length - Mating | 0.166" (4.22mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 20.0µin (0.51µm) |
| Contact Finish - Post | - | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
