TS-114-G-G-1

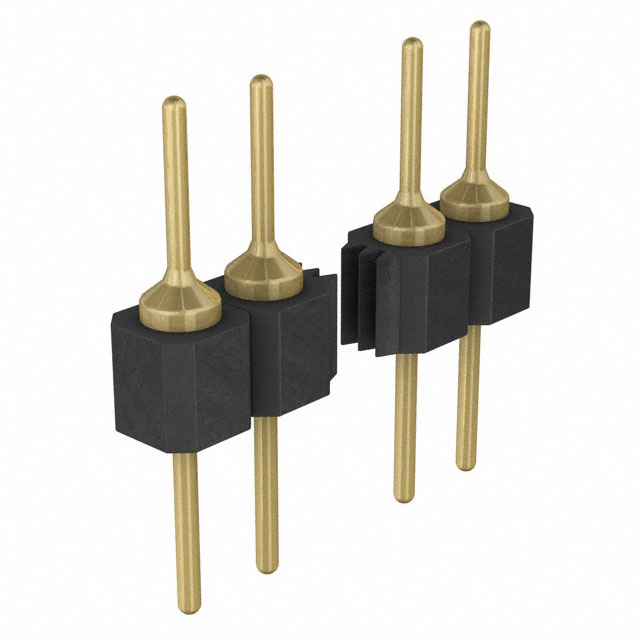

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TS-114-G-G-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TS-114-G-G-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TS-114-G-G-1 |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN HEADER 14POS .100 SNGL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $1.56 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | TS-114-G-G-1 | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN HEADER 14POS .100 SNGL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 22109 pcs | Data sheet | TX-1XX-X-X Drawing 1TX-1XX-X-X Drawing 4TX-1XX-X-X Drawing 2TS, HTS, TD Series DatasheetTX-1XX-X-X Drawing 3 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Shrouding | Unshrouded | Series | TS |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tube | Overall Contact Length | 0.508" (12.90mm) |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 14 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyester, Glass Filled |
| Insulation Height | 0.100" (2.54mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 14 position 0.100" (2.54mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.187" (4.75mm) | Contact Length - Mating | 0.176" (4.47mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 20.0µin (0.51µm) |
| Contact Finish - Post | - | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
