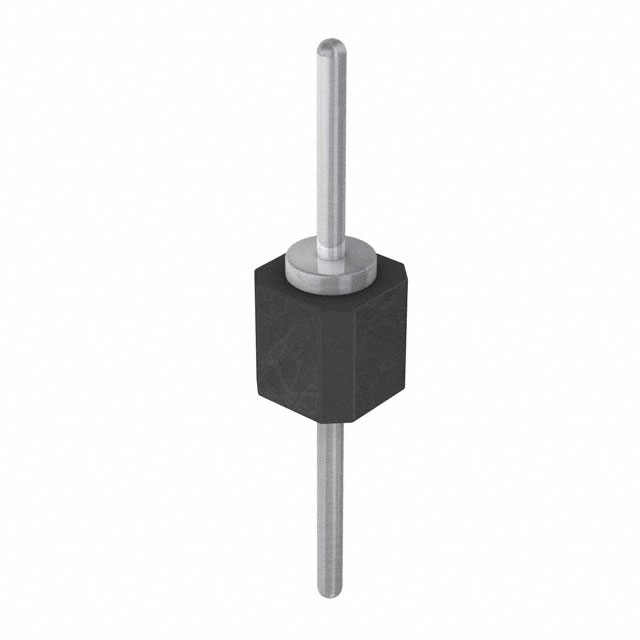

TS-101-T-A-1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TS-101-T-A-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TS-101-T-A-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TS-101-T-A-1 |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN HEADER 1POS .100 SNGL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $0.072 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | TS-101-T-A-1 | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN HEADER 1POS .100 SNGL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 309724 pcs | Data sheet | TX-1XX-X-X Drawing 1TX-1XX-X-X Drawing 4TX-1XX-X-X Drawing 2TS, HTS, TD Series DatasheetTX-1XX-X-X Drawing 3 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Shrouding | Unshrouded | Series | TS |
| Row Spacing - Mating | - | Pitch - Mating | - |
| Packaging | Bulk | Overall Contact Length | 0.531" (13.50mm) |
| Operating Temperature | -55°C ~ 105°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 3 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyester, Glass Filled | Insulation Height | 0.100" (2.54mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole 1 position | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Circular |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.210" (5.33mm) |
| Contact Length - Mating | 0.166" (4.22mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 200.0µin (5.08µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | - |
