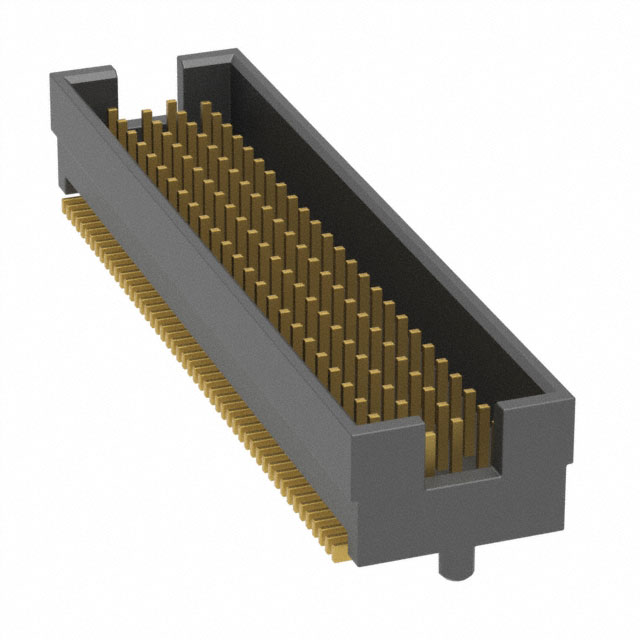

TOLC-125-02-L-Q-A
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TOLC-125-02-L-Q-A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TOLC-125-02-L-Q-A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TOLC-125-02-L-Q-A |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | QUAD ROW SMT TERMINAL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 16 pcs | 112 pcs | 512 pcs | 1008 pcs |
|---|---|---|---|---|---|
| $4.859 | $4.416 | $3.753 | $3.201 | $2.936 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | TOLC-125-02-L-Q-A | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | QUAD ROW SMT TERMINAL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 12629 pcs | Data sheet | TOLC-1xx-xx-x-Q-xx DrawingTOLC Series DatasheetTOLC SMT Footprint |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Shrouding | Shrouded - 4 Wall | Series | FOURRAY™ TOLC |
| Row Spacing - Mating | 0.050" (1.27mm) | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | SAM10258 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 4 | Number of Positions Loaded | All |
| Number of Positions | 100 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 6.35mm | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.220" (5.60mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Surface Mount 100 position 0.050" (1.27mm) |
| Current Rating | 2.4A per Contact | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Length - Mating | 0.100" (2.54mm) |
| Contact Finish Thickness - Post | 3.00µin (0.076µm) | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
