TMS-115-02-G-S

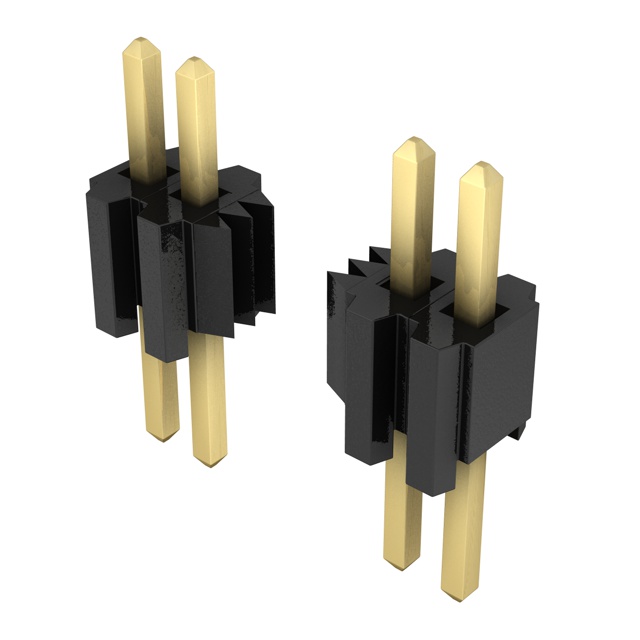

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TMS-115-02-G-S with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TMS-115-02-G-S with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TMS-115-02-G-S |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN HEADER 15POS .050" T/H GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 30 pcs | 120 pcs | 510 pcs | |
|---|---|---|---|---|---|
| $0.689 | $0.588 | $0.537 | $0.448 | ||
| 1020 pcs | 5010 pcs | 10020 pcs | |||
| $0.384 | $0.34 | $0.333 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | TMS-115-02-G-S | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN HEADER 15POS .050" T/H GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 68643 pcs | Data sheet | TMS Single Row Thru Hole FootprintTMS, HTMS, SNM Series DatasheetTMS-1yy-yy-yy-y-yy-yyy Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Shrouding | Unshrouded | Series | TMS |
| Row Spacing - Mating | - | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Tube | Overall Contact Length | 0.320" (8.13mm) |
| Other Names | SAM12993 TMS-115-02-G-S-ND |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 15 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.100" (2.54mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 15 position 0.050" (1.27mm) |
| Current Rating | 5A per Contact | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.120" (3.05mm) | Contact Length - Mating | 0.100" (2.54mm) |
| Contact Finish Thickness - Post | 3.00µin (0.076µm) | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
