TMS-102-01-G-S

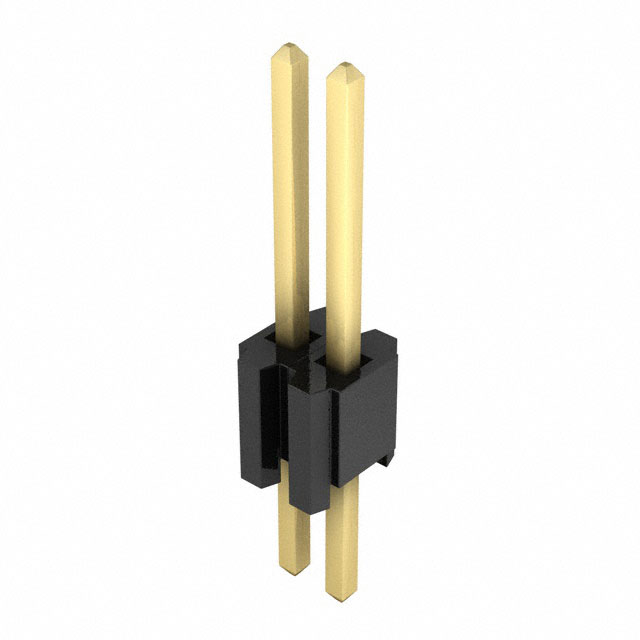

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TMS-102-01-G-S with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TMS-102-01-G-S with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TMS-102-01-G-S |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | .050" (1.27MM) MICRO HEADER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.154 | $0.147 | $0.103 | $0.088 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.073 | $0.063 | $0.059 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | TMS-102-01-G-S | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | .050" (1.27MM) MICRO HEADER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 384135 pcs | Data sheet | TMS, HTMS, SNM Series DatasheetTMS-1yy-yy-yy-y-yy-yyy Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Shrouding | Unshrouded | Series | TMS |
| Row Spacing - Mating | - | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Tube | Overall Contact Length | 0.450" (11.43mm) |
| Other Names | SAM12199 TMS-102-01-G-S-ND |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 2 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.100" (2.54mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 2 position 0.050" (1.27mm) |
| Current Rating | 5A per Contact | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.120" (3.05mm) | Contact Length - Mating | 0.230" (5.84mm) |
| Contact Finish Thickness - Post | 3.00µin (0.076µm) | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
