TMMS-130-01-S-Q-FS

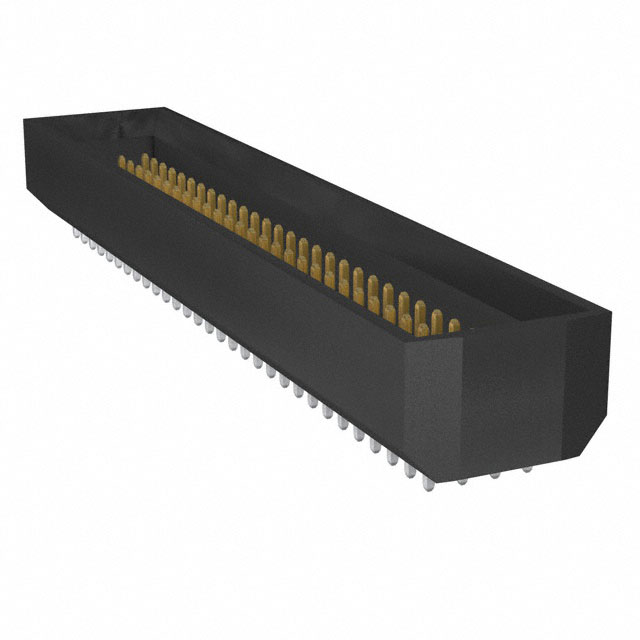

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TMMS-130-01-S-Q-FS with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TMMS-130-01-S-Q-FS with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TMMS-130-01-S-Q-FS |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | 2MM QUAD ROW SHROUDED TERMINAL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $6.865 | $6.196 | $5.38 | $4.935 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | TMMS-130-01-S-Q-FS | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | 2MM QUAD ROW SHROUDED TERMINAL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7991 pcs | Data sheet | TSH, TMMS Series DatasheetTMMS-1XX-XX-XX-Q-XX-FS Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Shrouding | Shrouded - 4 Wall | Series | TMMS |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tube | Overall Contact Length | 0.302" (7.67mm) |
| Other Names | SAM12992 TMMS-130-01-S-Q-FS-ND |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 4 | Number of Positions Loaded | All |
| Number of Positions | 120 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.299" (7.60mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 120 position 0.079" (2.00mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.113" (2.87mm) | Contact Length - Mating | 0.130" (3.30mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
