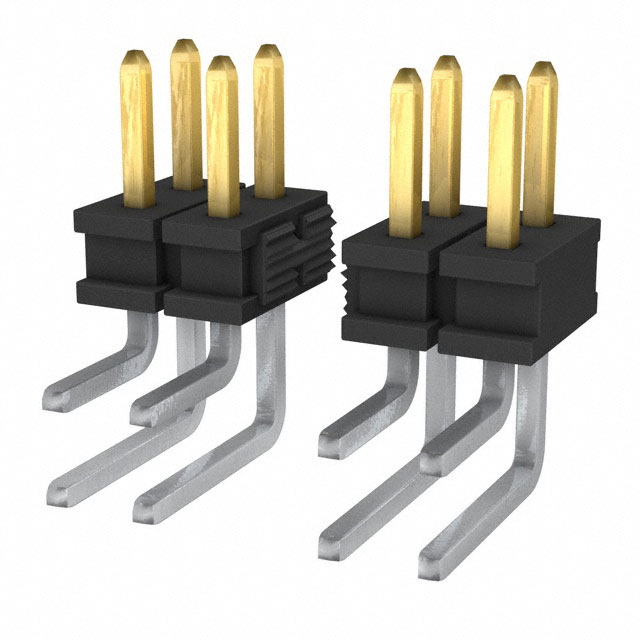

TMMH-118-01-L-D-RA
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TMMH-118-01-L-D-RA with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TMMH-118-01-L-D-RA with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TMMH-118-01-L-D-RA |
|---|---|
| Manufacturer | Samtec Inc. |
| Description | CONN HEADR 36POS DBL 2MM T/H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $1.427 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | TMMH-118-01-L-D-RA | Manufacturer | Samtec Inc. |
|---|---|---|---|
| Description | CONN HEADR 36POS DBL 2MM T/H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 21059 pcs | Data sheet | TMMH RA Drawing 1TMMH RA Drawing 2TMMH-1yy-yy-yy-y-RA-yy-yyy FootprintTMMH Series Datasheet, TH |
| Category | Connectors, Interconnects | Voltage - DC Spark Over (Nom) | Phosphor Bronze |
| Type Attributes | - | Termination | Solder |
| Style | Board to Board or Cable | Stacking Direction | Male Pin |
| Shrouding | 0.079" (2.00mm) | Shield Termination | Square |
| Series | FleXYZ™ TMMH | Row Spacing - Mating | Unshrouded |
| RoHS Status | Tube | Ripple Current - Low Frequency | - |
| Pitch - Connector | - | Overall Contact Length | 0.103" (2.62mm) |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 2 |
| Number of Positions | 36 | Number of Contacts | - |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Material - Insulation | All |
| Manufacturer Standard Lead Time | 3 Weeks | Manufacturer Part Number | TMMH-118-01-L-D-RA |
| Length - Post (Mating) | - | Insulation Material | Tin |
| Insulation Height | - | Features | - |
| Expanded Description | 36 Positions Header, Cuttable Connector 0.079" (2.00mm) Through Hole, Right Angle Gold | Description | CONN HEADR 36POS DBL 2MM T/H |
| Current Rating | - | Current - Max/Contact | - |
| Contact Length - Post | 0.126" (3.20mm) | Contact Length - Mating | 0.079" (2.00mm) |
| Contact Finish Thickness - Post | Liquid Crystal Polymer (LCP) | Contact Finish Thickness - Mating | Gold |
| Contact Finish - Post | 10µin (0.25µm) | Contact Finish - Mating | 0.157" (4.00mm) |
| Connector Type | Header, Cuttable | Actual Diameter | Black |
