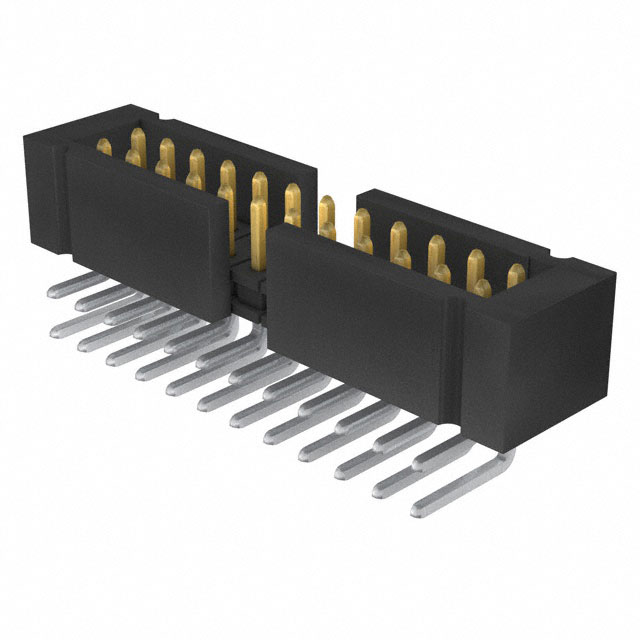

TMMH-112-01-F-D-RA-ES
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TMMH-112-01-F-D-RA-ES with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TMMH-112-01-F-D-RA-ES with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TMMH-112-01-F-D-RA-ES |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN HEADR 24POS DBL 2MM T/H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $1.356 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | TMMH-112-01-F-D-RA-ES | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN HEADR 24POS DBL 2MM T/H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 28266 pcs | Data sheet | TMMH-1yy-yy-yy-y-RA-yy-yyy FootprintTMMH RA DrawingTMMH RA Drawing 2TMMH Series Datasheet, TH |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | TMMH |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tube | Overall Contact Length | - |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 24 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.250" (6.35mm) | Insulation Color | Black |
| Ingress Protection | - | Features | End Shrouds |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole, Right Angle 24 position 0.079" (2.00mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.103" (2.62mm) | Contact Length - Mating | 0.126" (3.20mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 3.00µin (0.076µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header, Cuttable | Applications | - |
