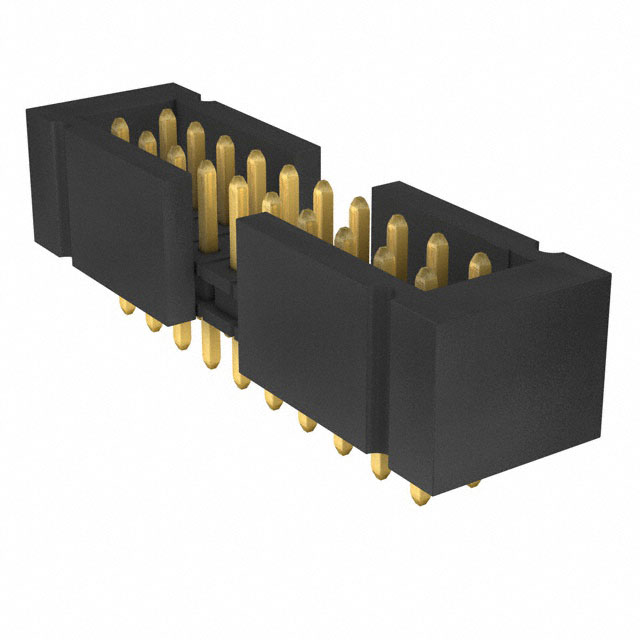

TMMH-110-01-G-D-ES
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TMMH-110-01-G-D-ES with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TMMH-110-01-G-D-ES with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TMMH-110-01-G-D-ES |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | 2MM LOW PROFILE STRIPS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $1.779 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | TMMH-110-01-G-D-ES | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | 2MM LOW PROFILE STRIPS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 20928 pcs | Data sheet | TMMH-1yy-yy-yy-y-yyy Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | TMMH |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tube | Overall Contact Length | 0.302" (7.67mm) |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 20 |
| Mounting Type | Through Hole | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.079" (2.00mm) | Insulation Color | Black |
| Ingress Protection | - | Features | End Shrouds |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 20 position 0.079" (2.00mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.097" (2.47mm) | Contact Length - Mating | 0.126" (3.20mm) |
| Contact Finish Thickness - Post | 3.00µin (0.076µm) | Contact Finish Thickness - Mating | 20.0µin (0.51µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Header, Cuttable | Applications | - |
