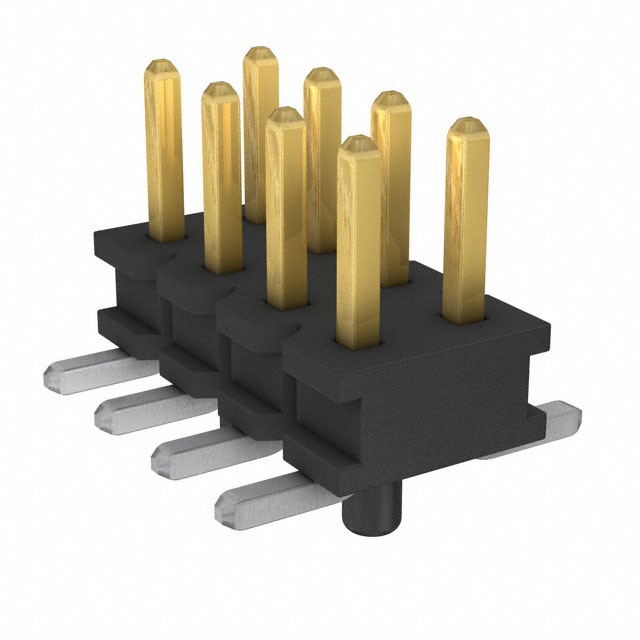

TMMH-104-01-F-DV
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TMMH-104-01-F-DV with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TMMH-104-01-F-DV with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TMMH-104-01-F-DV |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | 2MM LOW PROFILE STRIPS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.343 | $0.301 | $0.26 | $0.213 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.189 | $0.165 | $0.157 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | TMMH-104-01-F-DV | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | 2MM LOW PROFILE STRIPS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 127812 pcs | Data sheet | TMMH-1yy-yy-yy-DV-yyy-yyy DrawingTMMH Series Datasheet, SMTTMMH-1yy-yy-yy-DV-yyy-yyy Footprint |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | TMMH |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | SAM13068 TMMH-104-01-F-DV-ND |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 8 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.079" (2.00mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Surface Mount 8 position 0.079" (2.00mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Length - Mating | 0.126" (3.20mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 3.00µin (0.076µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header, Cuttable | Applications | - |
