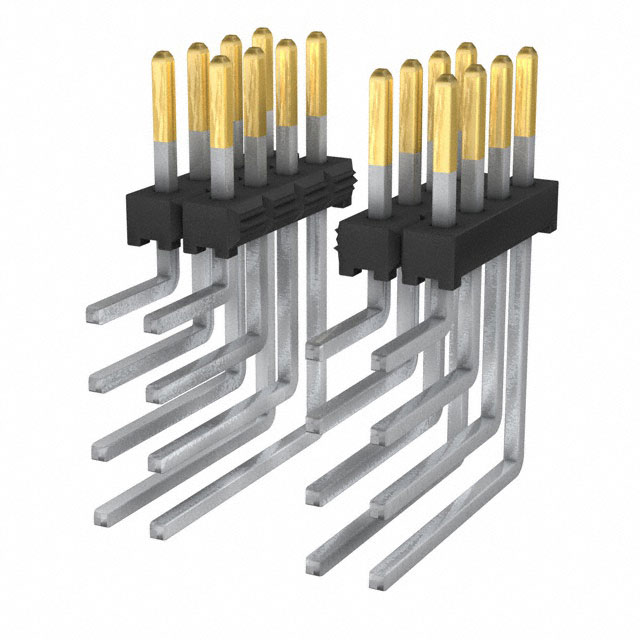

TMM-110-01-L-Q-RA
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TMM-110-01-L-Q-RA with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TMM-110-01-L-Q-RA with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TMM-110-01-L-Q-RA |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN HDER 40POS QUAD 2MM T/H RA |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $1.567 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | TMM-110-01-L-Q-RA | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN HDER 40POS QUAD 2MM T/H RA | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 22555 pcs | Data sheet | TMM Series TH DatasheetTMM-1yy-yy-yy-Q-Ry-yyy Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | TMM |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | Q4420998 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 4 | Number of Positions Loaded | All |
| Number of Positions | 40 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.315" (8.00mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole, Right Angle 40 position 0.079" (2.00mm) |
| Current Rating | 3.2A per Contact | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.120" (3.05mm) | Contact Length - Mating | 0.126" (3.20mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
