TMM-107-06-L-D-SM

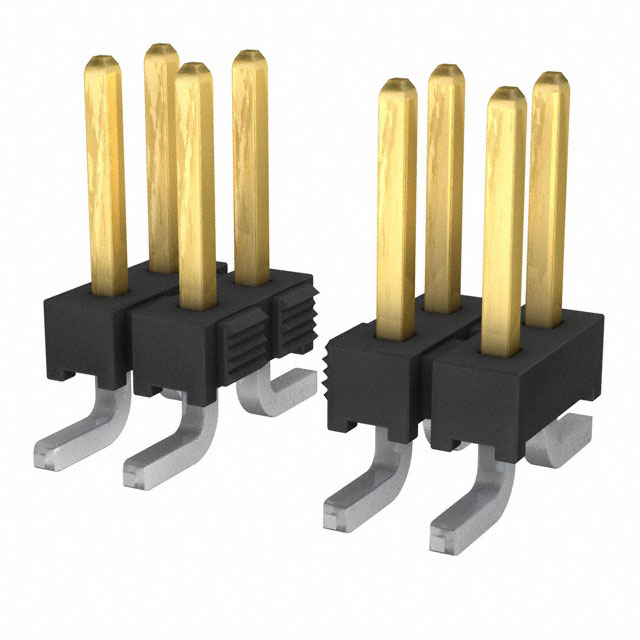

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TMM-107-06-L-D-SM with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TMM-107-06-L-D-SM with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TMM-107-06-L-D-SM |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN HEADER 14POS DBL 2MM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 41 pcs | 123 pcs | 533 pcs | |
|---|---|---|---|---|---|
| $0.706 | $0.602 | $0.55 | $0.458 | ||
| 1025 pcs | 5002 pcs | 10004 pcs | |||
| $0.393 | $0.348 | $0.34 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | TMM-107-06-L-D-SM | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN HEADER 14POS DBL 2MM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 59776 pcs | Data sheet | TMM-1xx-xx-xx-x-SM-xx-x DrawingTMM Double Row SMT FootprintTMM Series SMT Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | TMM |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | SAM12982 TMM-107-06-L-D-SM-ND |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 14 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.059" (1.50mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Surface Mount 14 position 0.079" (2.00mm) |
| Current Rating | 3.2A per Contact | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Length - Mating | 0.168" (4.27mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
