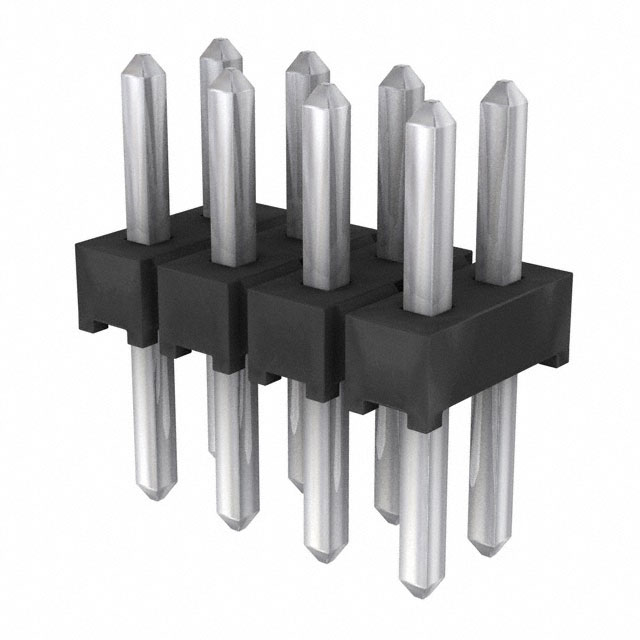

TMM-104-01-T-D
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TMM-104-01-T-D with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TMM-104-01-T-D with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TMM-104-01-T-D |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN HEADER 8POS DUAL 2MM T/H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.56 | $0.485 | $0.41 | $0.327 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.266 | $0.243 | $0.233 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | TMM-104-01-T-D | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN HEADER 8POS DUAL 2MM T/H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 82647 pcs | Data sheet | TMM Series TH DatasheetTMM_TH Double Row FootprintTMM Thru Hole Drawing 1TMM Thru Hole Drawing 2 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | TMM |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Bulk | Overall Contact Length | 0.323" (8.20mm) |
| Other Names | SAM1177-04 | Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 8 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.059" (1.50mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole 8 position 0.079" (2.00mm) | Current Rating | 3.2A per Contact |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.138" (3.50mm) |
| Contact Length - Mating | 0.126" (3.20mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | - |
