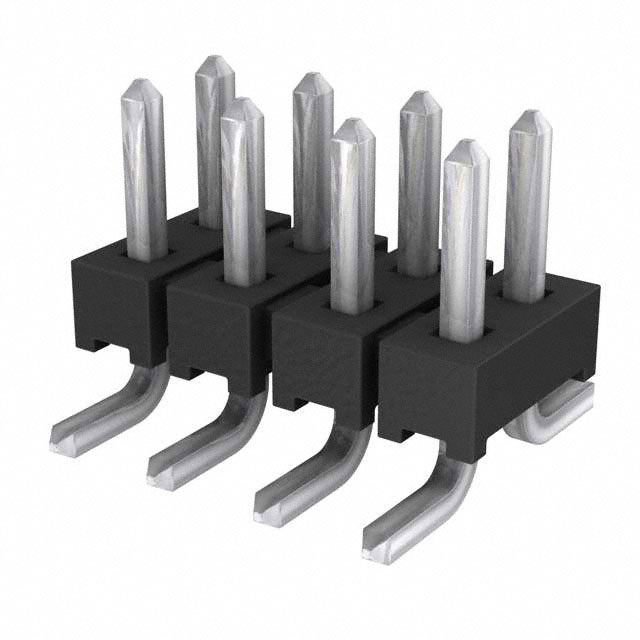

TMM-104-01-T-D-SM
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TMM-104-01-T-D-SM with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TMM-104-01-T-D-SM with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TMM-104-01-T-D-SM |
|---|---|
| Manufacturer | Samtec Inc. |
| Description | CONN HEADER 8POS DUAL 2MM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.685 | $0.592 | $0.501 | $0.399 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.325 | $0.296 | $0.285 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | TMM-104-01-T-D-SM | Manufacturer | Samtec Inc. |
|---|---|---|---|
| Description | CONN HEADER 8POS DUAL 2MM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 80818 pcs | Data sheet | TMM-1XX-XX-XX-X-SM-XX-X DrawingTMM Double Row SMT FootprintTMM Series SMT Datasheet |
| Category | Connectors, Interconnects | Voltage - DC Spark Over (Nom) | Phosphor Bronze |
| Type Attributes | - | Termination | Solder |
| Style | Board to Board or Cable | Stacking Direction | Male Pin |
| Shrouding | 0.079" (2.00mm) | Shield Termination | Square |
| Series | TMM | Row Spacing - Mating | Unshrouded |
| RoHS Status | Tube | Ripple Current - Low Frequency | - |
| Pitch - Connector | - | Overall Contact Length | - |
| Other Names | SAM1171-04 | Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions | 8 |
| Number of Contacts | - | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Material - Insulation | All | Manufacturer Part Number | TMM-104-01-T-D-SM |
| Length - Post (Mating) | - | Insulation Material | Tin |
| Insulation Height | - | Features | - |
| Expanded Description | 8 Positions Header Connector 0.079" (2.00mm) Surface Mount Tin | Description | CONN HEADER 8POS DUAL 2MM SMD |
| Current Rating | 3.2A per Contact | Current - Max/Contact | - |
| Contact Length - Post | 0.126" (3.20mm) | Contact Length - Mating | 0.079" (2.00mm) |
| Contact Finish Thickness - Post | Liquid Crystal Polymer (LCP) | Contact Finish Thickness - Mating | Tin |
| Contact Finish - Post | - | Contact Finish - Mating | 0.059" (1.50mm) |
| Connector Type | Header | Actual Diameter | Black |
