TMM-103-01-G-D-SM

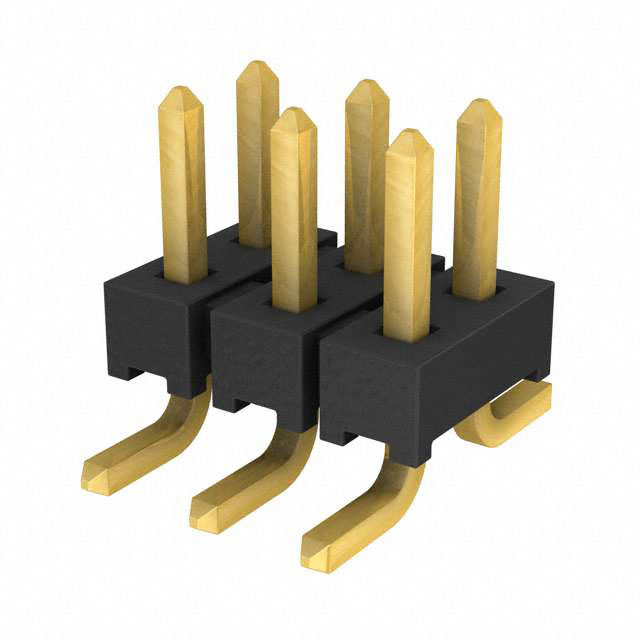

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TMM-103-01-G-D-SM with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TMM-103-01-G-D-SM with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TMM-103-01-G-D-SM |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN HEADER 6POS DUAL 2MM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.367 | $0.329 | $0.27 | $0.214 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.183 | $0.167 | $0.161 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | TMM-103-01-G-D-SM | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN HEADER 6POS DUAL 2MM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 129098 pcs | Data sheet | TMM-1xx-xx-xx-x-SM-xx-x DrawingTMM Double Row SMT FootprintTMM Series SMT Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | TMM |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | SAM1167-03 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 6 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.059" (1.50mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Surface Mount 6 position 0.079" (2.00mm) | Current Rating | 3.2A per Contact |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | - |
| Contact Length - Mating | 0.126" (3.20mm) | Contact Finish Thickness - Post | 3.00µin (0.076µm) |
| Contact Finish Thickness - Mating | 20.0µin (0.51µm) | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
