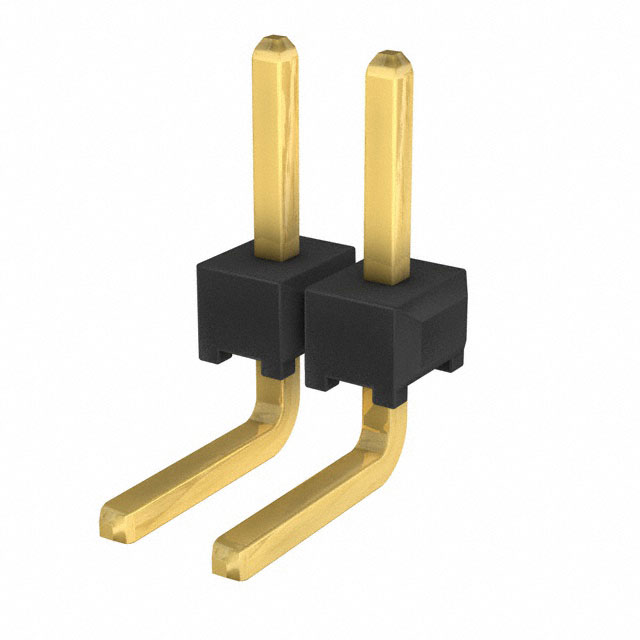

TMM-102-01-G-S-RA
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TMM-102-01-G-S-RA with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TMM-102-01-G-S-RA with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TMM-102-01-G-S-RA |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | 2MM TERMINAL STRIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $0.169 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | TMM-102-01-G-S-RA | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | 2MM TERMINAL STRIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 111384 pcs | Data sheet | TMM Series TH DatasheetTMM-1yy-yy-yy-y-RA-yyy Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | TMM |
| Row Spacing - Mating | - | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 2 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 3 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.079" (2.00mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole, Right Angle 2 position 0.079" (2.00mm) | Current Rating | 3.2A per Contact |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.120" (3.05mm) |
| Contact Length - Mating | 0.126" (3.20mm) | Contact Finish Thickness - Post | 3.00µin (0.076µm) |
| Contact Finish Thickness - Mating | 20.0µin (0.51µm) | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
