TMM-101-01-T-D-RA

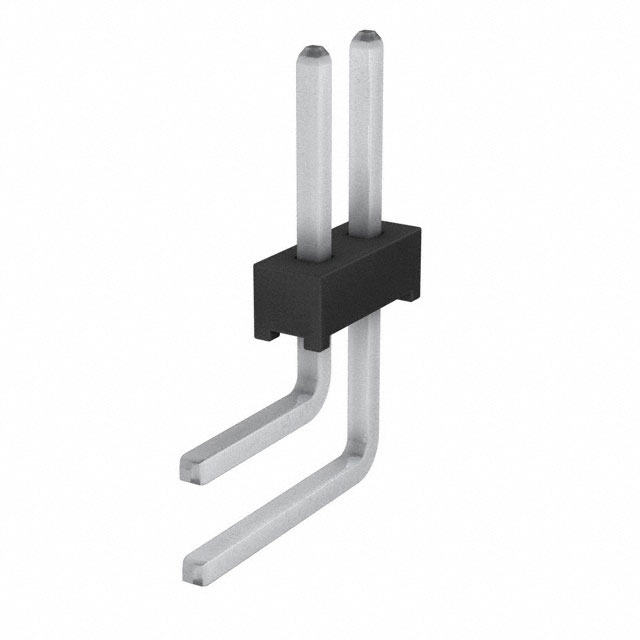

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TMM-101-01-T-D-RA with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TMM-101-01-T-D-RA with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TMM-101-01-T-D-RA |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | 2MM TERMINAL STRIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.077 | $0.071 | $0.049 | $0.042 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.034 | $0.03 | $0.028 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | TMM-101-01-T-D-RA | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | 2MM TERMINAL STRIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 906356 pcs | Data sheet | TMM Series TH DatasheetTMM-1yy-yy-yy-y-RA-yyy Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | TMM |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | - |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | SAM12974 TMM-101-01-T-D-RA-ND |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 2 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.155" (3.94mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole, Right Angle 2 position |
| Current Rating | 3.2A per Contact | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.120" (3.05mm) | Contact Length - Mating | 0.126" (3.20mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
