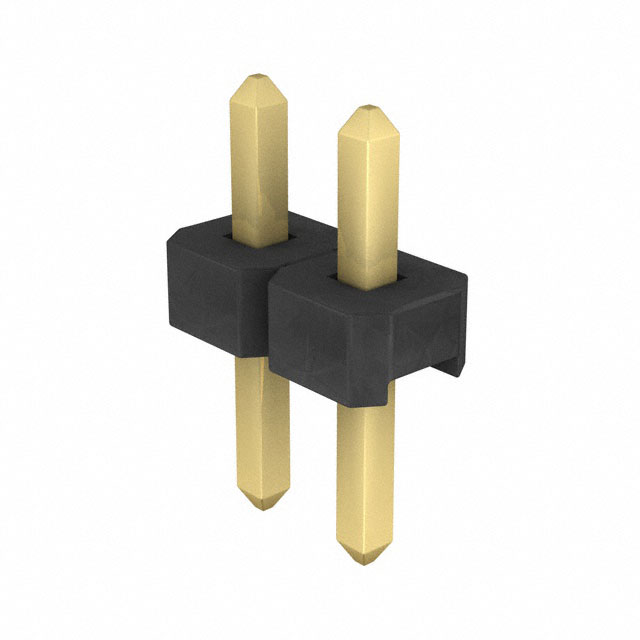

TLW-102-06-G-S
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TLW-102-06-G-S with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TLW-102-06-G-S with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TLW-102-06-G-S |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN HEADER .100" 2POS SGL GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.613 | $0.55 | $0.453 | $0.358 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.307 | $0.28 | $0.27 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | TLW-102-06-G-S | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN HEADER .100" 2POS SGL GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 69697 pcs | Data sheet | MTLW, TLW Series DatasheetTLW-1yy-yy-yyy-y-yy-yyy DrawingTLW Thru Hole Footprint |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | Flex Stack, TLW |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | 0.118" (3.00mm) |
| Other Names | SAM1100-02 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 2 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.060" (1.52mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole 2 position 0.100" (2.54mm) | Current Rating | 5.2A per Contact |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.135" (3.43mm) |
| Contact Length - Mating | 0.105" (2.67mm) | Contact Finish Thickness - Post | Flash |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
