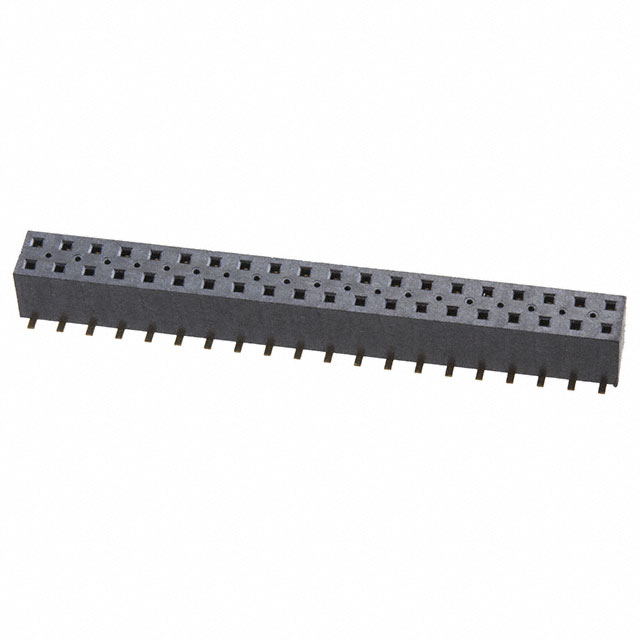

TLE-120-01-G-DV-A
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TLE-120-01-G-DV-A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TLE-120-01-G-DV-A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TLE-120-01-G-DV-A |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | 2MM SKT STRIPS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 14 pcs | 112 pcs | 504 pcs | 1008 pcs |
|---|---|---|---|---|---|
| $2.10 | $1.918 | $1.462 | $1.233 | $1.165 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | TLE-120-01-G-DV-A | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | 2MM SKT STRIPS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 32842 pcs | Data sheet | TLE Series DatasheetTLE Series Drawing 1TLE SMT & Pass Through FootprintTLE Series Drawing 2 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Series | TLE | Row Spacing - Mating | 0.079" (2.00mm) |
| Pitch - Mating | 0.079" (2.00mm) | Packaging | Bulk |
| Other Names | SAM10186 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 40 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 4 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.177" (4.50mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Push-Pull | Detailed Description | 40 Position Receptacle, Pass Through Connector Surface Mount |
| Current Rating | 3.2A per Contact | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) | Contact Finish - Post | - |
| Contact Finish - Mating | Gold | Connector Type | Receptacle, Pass Through |
| Applications | - |
