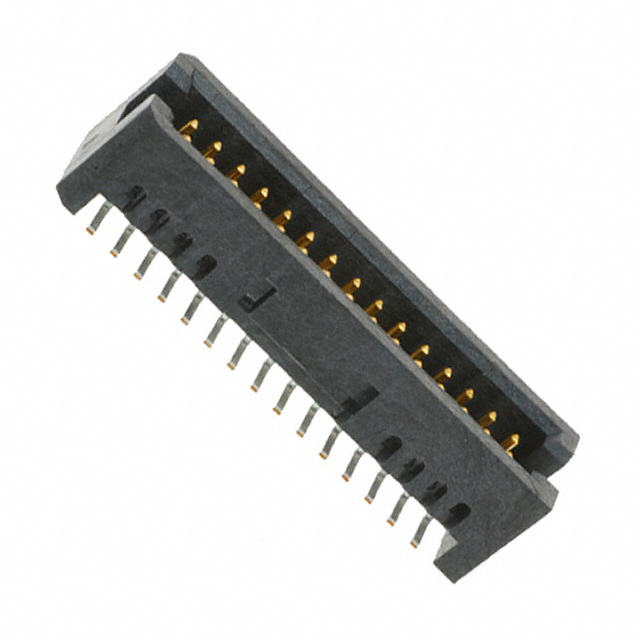

TFML-115-02-S-D
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TFML-115-02-S-D with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TFML-115-02-S-D with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TFML-115-02-S-D |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN HEADER .05" 30POS DUAL SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 26 pcs | 104 pcs | 520 pcs | 1014 pcs |
|---|---|---|---|---|---|
| $2.24 | $1.96 | $1.774 | $1.494 | $1.307 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | TFML-115-02-S-D | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN HEADER .05" 30POS DUAL SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 25349 pcs | Data sheet | TFM,TFML Series DatasheetTFML SMT FootprintTFML-1yy-yy-yyy-D-yyy Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | Tiger Eye™ TFML |
| Row Spacing - Mating | 0.050" (1.27mm) | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | SAM8264 TFML11502SD |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 30 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.220" (5.60mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Friction Lock | Detailed Description | Connector Header Surface Mount 30 position 0.050" (1.27mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Length - Mating | 0.134" (3.39mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
